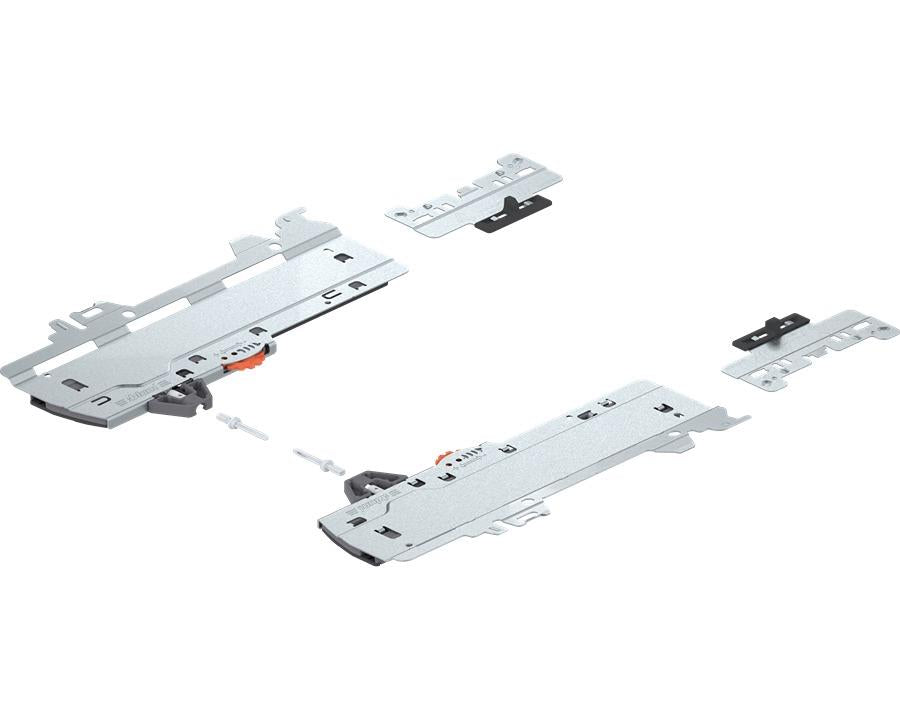

Blum MERIVOBOX TIP-ON BLUMOTION Unit – Type L5 – Black – by Wilson and Bradley

Designed for high-performance applications, the Blum MERIVOBOX TIP-ON BLUMOTION Unit in Black (Type L5) combines push-to-open functionality with soft-close action, ideal for heavier drawer loads. This advanced system simplifies the production and installation of drawers using a consistent platform with minimal components.

Featuring an innovative L-shaped cabinet profile and a sleek, minimalist design, this unit enables streamlined assembly and precise adjustment across various drawer sizes.

Key Features:

  • TIP-ON push-to-open system with integrated soft-close BLUMOTION
  • 2.5 mm gap for a seamless drawer front
  • Four-way front adjustment for accurate alignment
  • Synchronised triggering for cabinet widths ≥ 243 mm
  • Easy slip-on installation with spiral screw depth adjustment

Specifications:

  • Type: TIP-ON BLUMOTION Unit (Type L5)
  • System: MERIVOBOX
  • Dynamic Load Capacity: 70kg
  • Nominal Length: 450mm (up to 650mm)
  • Pull-out Weight Range: 35–70kg
  • Triggering Force: 24kg
  • Clamping Distance: 39mm
  • Closing Distance (BLUMOTION/BLUMATIC): 43mm
  • Self-closing Distance: 12mm
  • Material: Nylon/Steel
  • Finish: Black
  • Fixing Method: Slip-on
  • Depth Adjustment: ±3mm via spiral screw
  • Included Accessories: Latch + 2 adaptors
  • Pack Includes: Left + Right units
  • Packaging: Commercial
