Blum TIP-ON BLUMOTION set (unit and latch) for MERIVOBOX. For 350 – 600mm NL runners. Type L3. Total weight of pull out 15 - 40kg. by W&B

Blum TIP-ON BLUMOTION set (unit and latch) for MERIVOBOX. For 350 – 600mm NL runners. Type L3. Total weight of pull out 15 - 40kg. by W&B

$46.17
$46.17
Sale Sold out

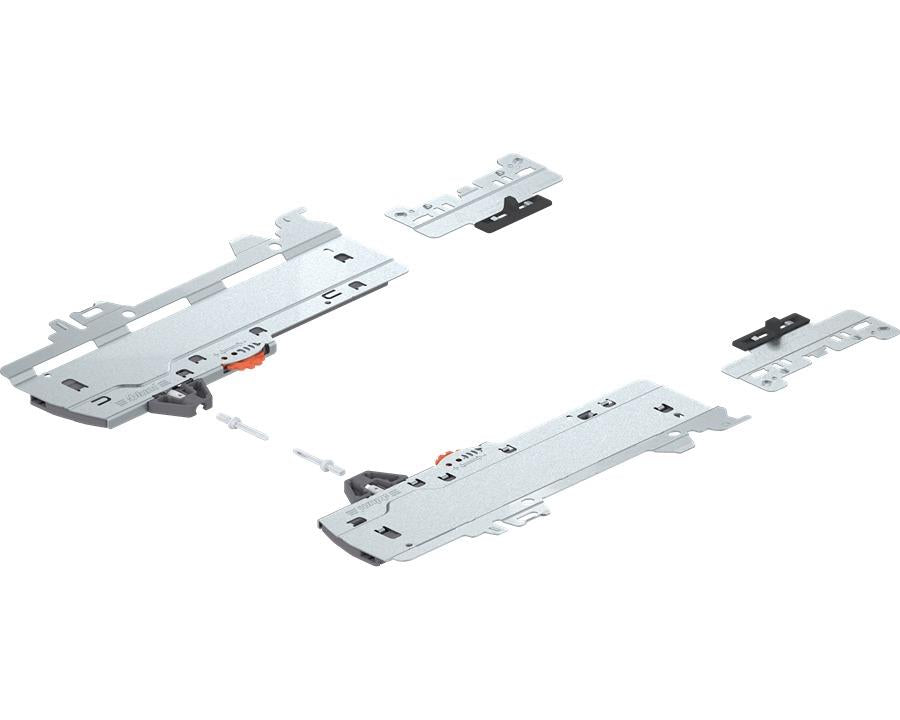

Blum MERIVOBOX TIP-ON BLUMOTION Unit – Type L3 – RAL 7037 Light Grey – by Wilson and Bradley

Bring precision and performance to your drawer systems with the Blum MERIVOBOX TIP-ON BLUMOTION Unit in Light Grey (RAL 7037). Designed for ease of installation and consistent functionality, this unit enables smooth mechanical opening and soft-close action for heavier pull-outs — all within a streamlined drawer platform.

Built with an L-shaped cabinet profile, this unit supports quick, uniform assembly and a minimalist aesthetic. Ideal for a wide variety of drawer configurations, the platform’s flexibility helps you meet diverse design needs with fewer components.

Key Features:

  • Combines TIP-ON push-to-open with soft-close BLUMOTION
  • Slim 2.5 mm front gap
  • Four-dimensional front adjustment
  • Synchronised function for cabinet widths ≥ 243 mm
  • Convenient slip-on fitting and easy depth adjustment

Specifications:

  • Type: TIP-ON BLUMOTION Unit (Type L3)
  • System: MERIVOBOX
  • Dynamic Load: 40kg
  • Nominal Length: 350mm (up to 650mm)
  • Pull-out Weight Range: 15–40kg
  • Triggering Force: 22kg
  • Trigger Path: 1
  • Clamping Distance: 39mm
  • Closing Distance (BLUMOTION/BLUMATIC): 43mm
  • Self-closing Distance: 12mm
  • Material: Nylon/Steel
  • Colour/Finish: RAL 7037 Light Grey
  • Fixing Method: Slip-on
  • Depth Adjustment: ±3mm via spiral screw
  • Included Components: Latch + 2 adaptors
  • Pack Contents: Left + Right units
  • Packaging: Commercial
