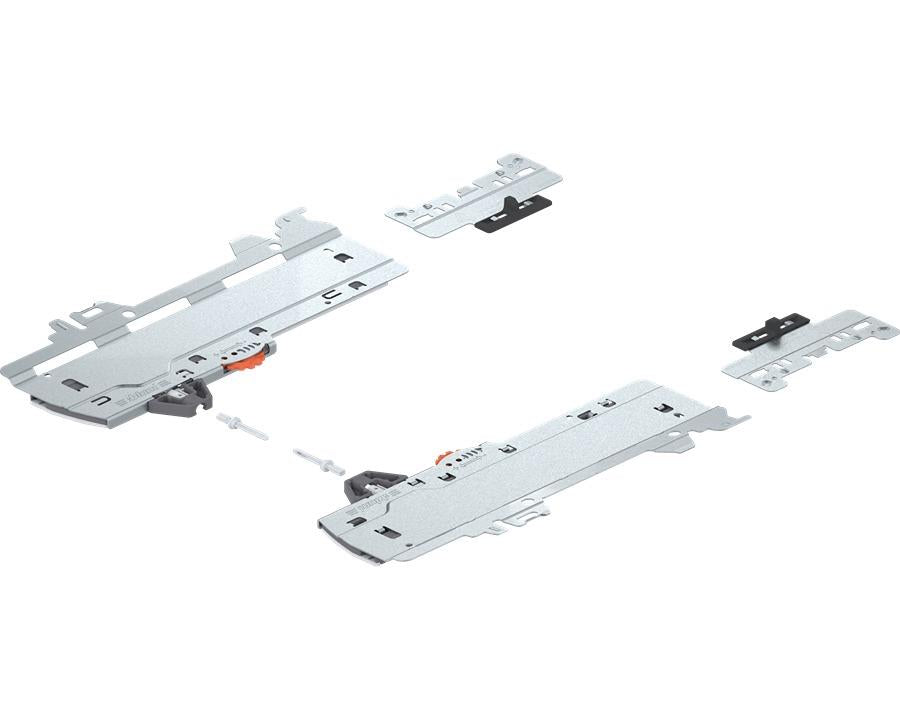

Blum TIP-ON BLUMOTION set (unit and latch) for MERIVOBOX. For 350 – 600mm NL runners. Type L1. Total weight of pull out 0 - 20kg by W&B

Blum MERIVOBOX TIP-ON BLUMOTION Unit – Type L1 – Light Grey – by Wilson and Bradley

Enhance your drawer functionality with the Blum MERIVOBOX TIP-ON BLUMOTION unit in RAL 7035 Light Grey. Combining a sleek design with robust performance, this unit supports the creation of versatile drawer configurations using a consistent, easy-to-install platform.

Engineered for both convenience and performance, this system integrates mechanical push-to-open functionality with soft-close BLUMOTION, ensuring smooth and silent operation. The L-shaped cabinet profile maximises space efficiency and allows for uniform assembly across your MERIVOBOX range.

Key Features:

• TIP-ON mechanical opening with soft-close BLUMOTION
• Minimal 2.5 mm gap for a clean finish
• Four-dimensional front adjustment for precise alignment
• Wide trigger range with synchronisation support for LW ≥ 243 mm
• Simple slip-on installation with spiral screw depth adjustment

Technical Specifications:

• Type: TIP-ON BLUMOTION Unit (Type L1)
• Product Group: MERIVOBOX
• Load Capacity: 40kg dynamic
• Nominal Length: 350mm (up to 650mm)
• Pull-out Weight Range: 10–20kg
• Triggering Force: 15.5kg
• Clamping Distance: 39mm
• Closing Distance (BLUMOTION/BLUMATIC): 43mm
• Self-closing Distance: 12mm
• Material: Nylon/Steel
• Finish: RAL 7035 Light Grey
• Fixing Method: Slip-on
• Depth Adjustment: ±3mm with spiral screw
• Additional Parts: Includes latch and 2 adaptors
• Pack Includes: Left and Right units
• Packaging: Commercial packing
