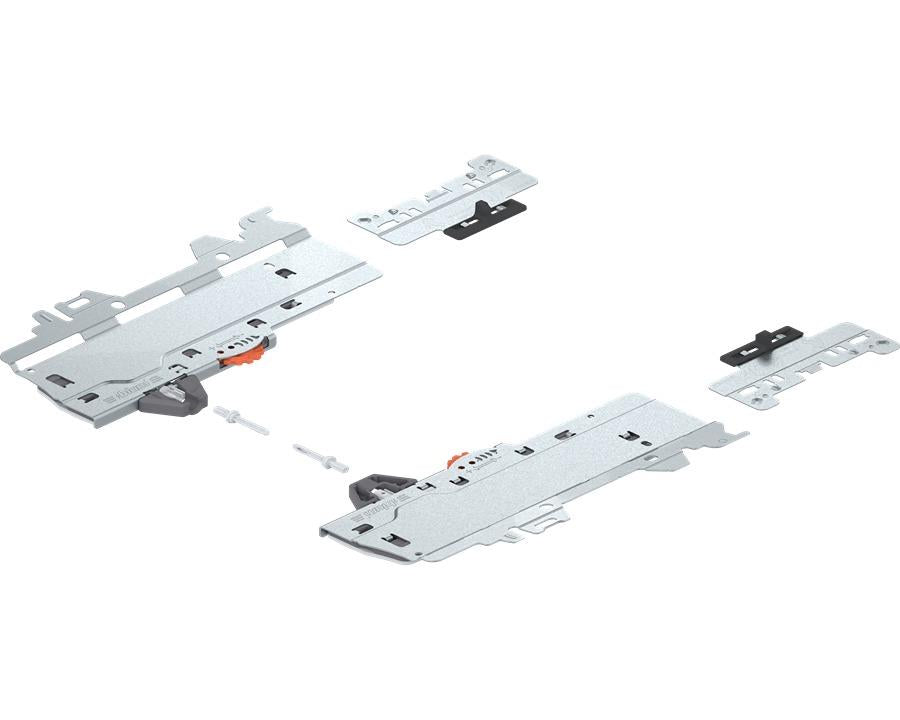

• Blum TIP-ON BLUMOTION set (unit and latch) for MERIVOBOX. For 270 – 300mm NL runners. Type S1. Total weight of pull out 10 - 20kg by W&B
1 1

Richard Ho Improvement

Blum TIP-ON BLUMOTION set (unit and latch) for MERIVOBOX. For 270 – 300mm NL runners. Type S1. Total weight of pull out 10 - 20kg by W&B

Blum TIP-ON BLUMOTION set (unit and latch) for MERIVOBOX. For 270 – 300mm NL runners. Type S1. Total weight of pull out 10 - 20kg by W&B

$46.17
$46.17
Sale Sold out

MERIVOBOX by Wilson and Bradley

Blum's MERIVOBOX system combines a slim, stylish drawer side with high stability and easy assembly. This innovative platform allows you to create a variety of drawers with minimal components, all while ensuring a seamless assembly process. MERIVOBOX blends a minimalist design with cutting-edge functionality, making it perfect for custom applications. Its L-shaped cabinet profile and simple adjustment system make it easy to implement and adaptable to various needs. With an award-winning design, MERIVOBOX offers maximum functionality with style.

Key Features:

  • Integrated TIP-ON mechanical opening with soft-close BLUMOTION
  • 2.5mm gap for sleek design
  • Four-dimensional front adjustment for precision
  • Extensive trigger range for flexible applications
  • Synchronization for cabinet widths of 243mm and wider

Product Specs:

  • Type: TIP-ON BLUMOTION Unit
  • Load Capacity: 40kg
  • Nominal Length: 270mm – 349mm
  • Pull-out Weight: 10-20kg
  • Trigger Path: 1
  • Triggering Force: 17kg
  • Clamping Distance: 39mm
  • Closing Distance: 25.5mm (BLUMOTION & BLUMATIC)
  • Self-closing Distance: 12mm
  • Material: Nylon/Steel
  • Colour: RAL 7035 Light Grey
  • Mounting: Slip-on
  • Depth Adjustment: +/- 3mm (spiral screw)
  • Packaging: Commercial packing (Right + Left set)
