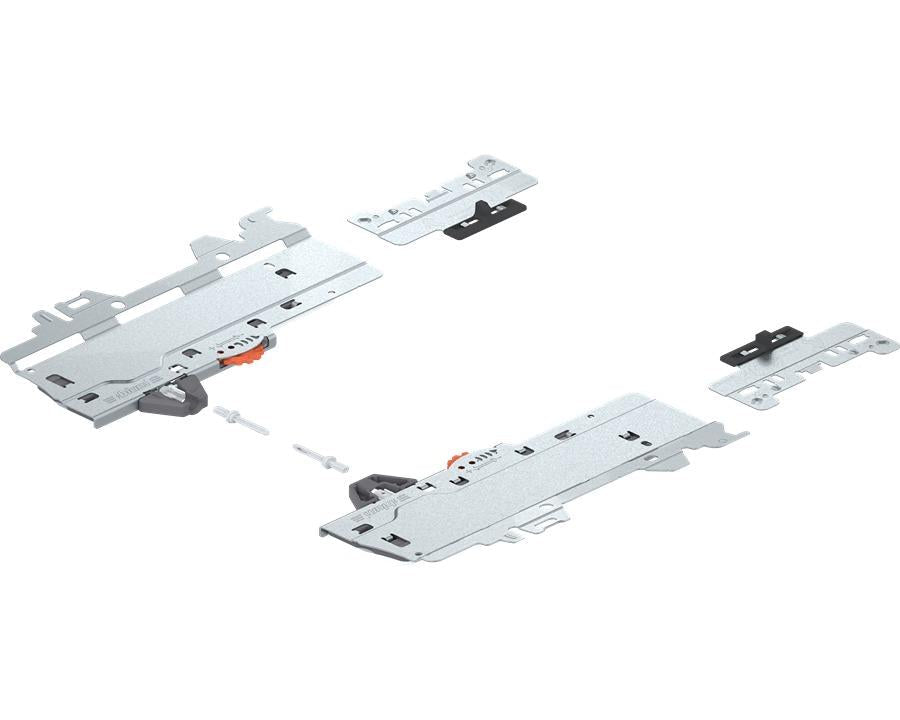

Blum TIP-ON BLUMOTION set (unit and latch) for MERIVOBOX. For 270 – 300mm NL runners. Type S0. Total weight of pull out 0 - 10kg by W&B

Blum MERIVOBOX TIP-ON BLUMOTION Unit – 270mm – White – by Wilson and Bradley

Upgrade your drawer system with the Blum MERIVOBOX TIP-ON BLUMOTION unit, offering a refined balance of sleek design, reliable stability, and effortless assembly. This solution allows you to build a wide variety of drawer configurations using just a few components — all following the same streamlined process.

Designed for modern cabinetry, this unit combines mechanical push-to-open functionality with soft-close BLUMOTION for a smooth, quiet experience. The innovative L-shaped cabinet profile ensures consistent performance, simplified adjustments, and a contemporary look.

Key Features:

• TIP-ON mechanical open with soft-close BLUMOTION
• Slim 2.5 mm gap design
• Four-way front adjustment for precision alignment
• Wide trigger range with synchronisation for cabinet widths of 243 mm+
• Easy slip-on installation and tool-free adjustment

Technical Specifications:

• Type: TIP-ON BLUMOTION Unit (Type S0)
• Load Capacity: Up to 40kg dynamic
• Nominal Length: 270mm (up to 349mm)
• Triggering Force: 14.5kg
• Self-closing Distance: 12mm
• Closing Distance (BLUMOTION): 25.5mm
• Material: Durable nylon and steel
• Colour/Finish: White
• Adjustment Range: Depth +/- 3mm via spiral screw
• Fixing Method: Slip-on
• Additional Parts: Includes latch and two adaptors
• Set Includes: Left and Right units
• Packaging: Commercial packing
