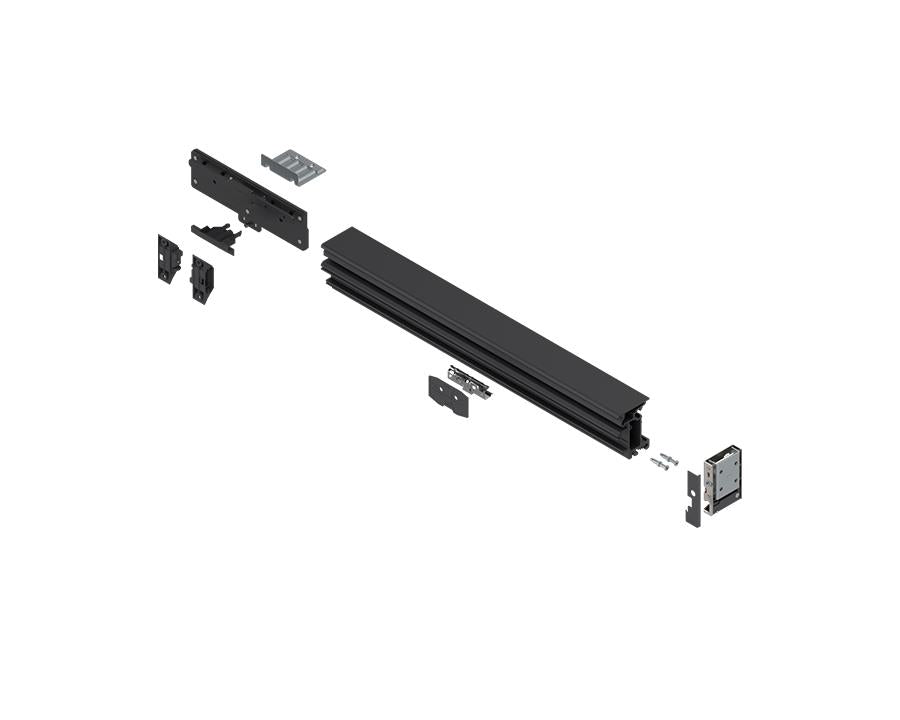

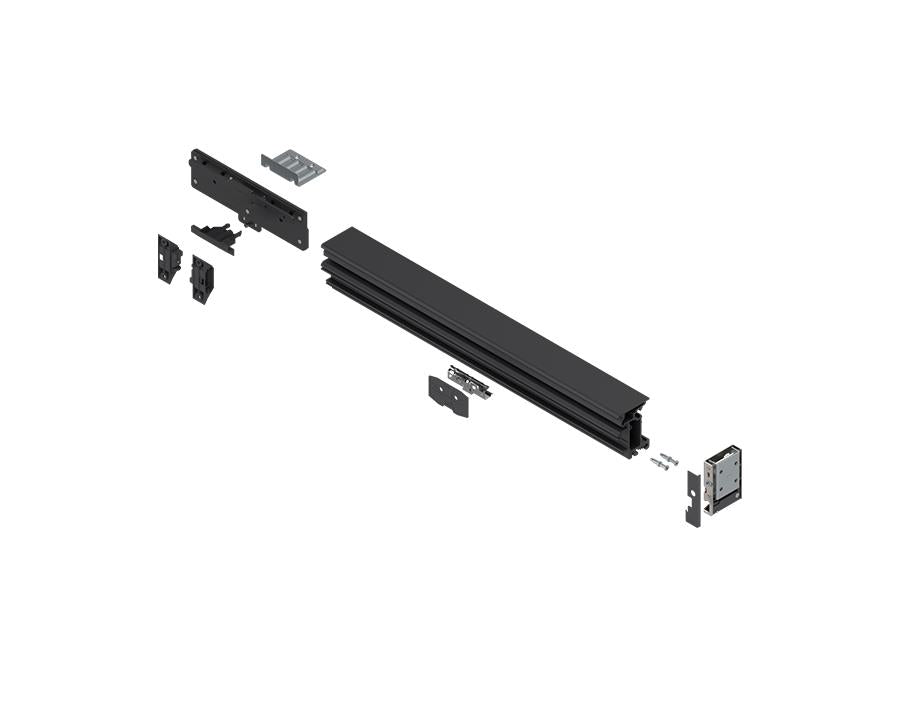

REVEGO Duo Assembly Set by Wilson and Bradley

Designed for seamless integration with the REVEGO duo pocket door system, this 542 mm aluminium assembly set in a sleek black finish ensures smooth, precise installation.

Specifications:

  • Type: Assembly Set
  • Application: For REVEGO duo
  • Length: 542 mm
  • Material: Aluminium
  • Colour/Finish: Black
  • Fixing Method: Slides in and screws on
  • Package: Set

Additional Notes:

  • Blum System Screw (6 x 14.5 mm, Item No. 6611450HG) must be used – available separately
  • CBR04DS Door Straightener recommended for all REVEGO uno and duo systems – sold separately
  • Internal dimensions (W x H x D) define the maximum space for internal design
  • For combined setups, design the widest front first
  • Certified for 40,000 open/close cycles
  • Manual operation force remains under 70 N, tested for durability
  • Detailed specs, cut sizes, and drilling patterns are available in the Blum Product Configurator

Assembly Requirements:

Use a CNC machine or Blum MINIPRESS top with EASYSTICK for precision machining. Horizontal drillings and a track cut-out are essential. A drilling template is strongly recommended for REVEGO pocket connector placement.
