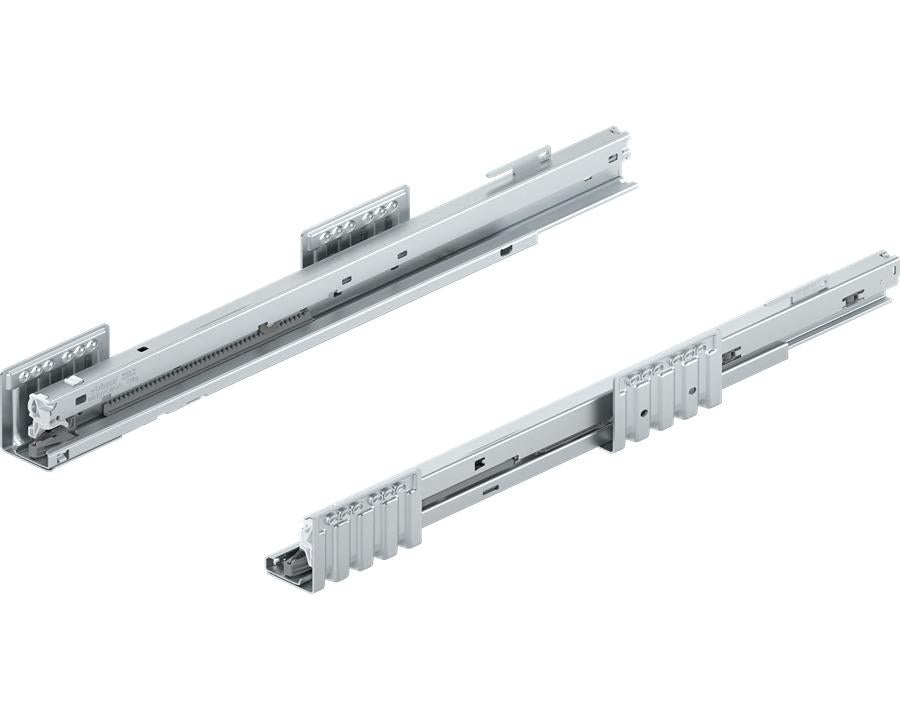

Blum MERIVOBOX Over Extension Carcase Runner Set 500mm 70kg. 453.5001BZ by W&B

MERIVOBOX Drawer System – by Wilson and Bradley

MERIVOBOX is Blum’s state-of-the-art box system that offers a sleek, slim drawer side profile, excellent load capacity, and simplified assembly. Built with just a few components and a uniform installation process, it enables the creation of high-performance drawers for a wide variety of cabinet applications.

The system features four core innovations: a platform for efficient manufacturing, a minimalist design for a clean, modern aesthetic, a re-engineered cabinet profile for enhanced strength, and a refined assembly concept that saves time and ensures consistency.

Its signature L-shaped cabinet profile enhances stability and function, making MERIVOBOX a standout choice for any modern cabinet project. With its award-winning design and exceptional performance, it's the perfect solution for functional, stylish storage.

• Steel drawer sides available in Silk White, Indium Grey, and Orion Grey
• Distinctive slim drawer side design
• Straight interior walls with flush cover cap for a seamless finish
• Smooth, synchronised feather-light glide
• Clip-on front installation—even works when pull-out is already fitted
• 3-dimensional front adjustment for perfect alignment
• BLUMOTION cabinet profile with interface for TIP-ON BLUMOTION and side stabilisation
• Compatible with SERVO-DRIVE electric opening support

• Runner system: MERIVOBOX cabinet profile
• Dynamic load bearing: 70kg
• Nominal length: 500mm
• Cabinet profile length: 401.75mm
• Drawer runner version: Special hook position
• Pull-out type: Full extension
• Motion technology: BLUMOTION / compatible with TIP-ON BLUMOTION
• Finish: Zinc plated
• Material: Steel
• Assembly type: Side mounted with screws
• Cabinet profile width: 26.5mm
• Connection with box or drawer: For locking device
• Hook position (from end of runner): 50.5mm
• Minimum internal cabinet depth: 503mm
• Item package: Right + Left
• Packaging: Commercial packing
