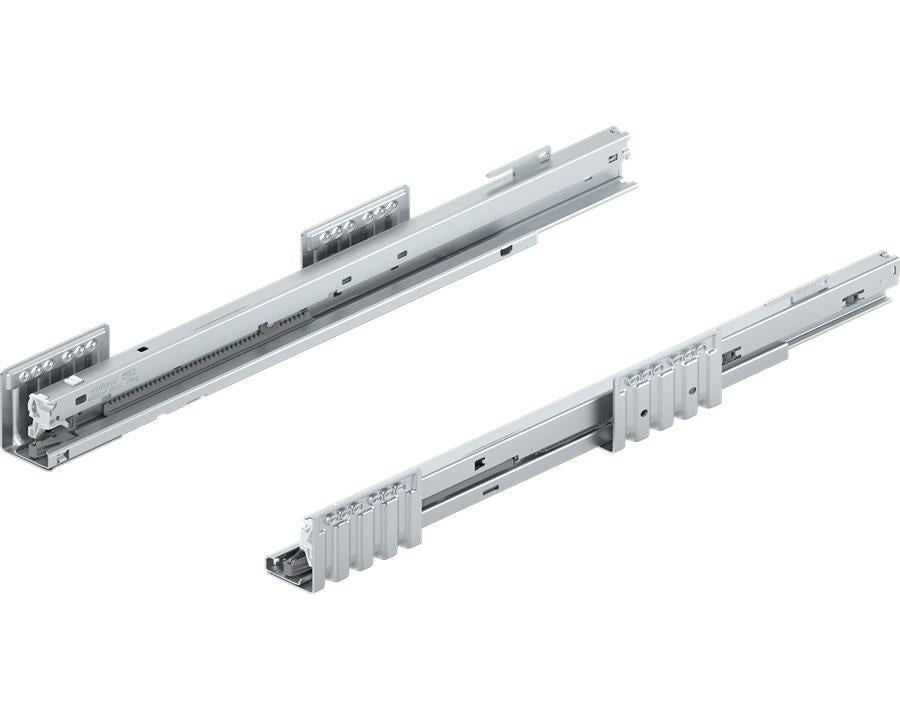

Blum MERIVOBOX Carcase Runner Set 500mm 70kg. 453.5001B W&B

MERIVOBOX Drawer System – by Wilson and Bradley

MERIVOBOX is Blum’s cutting-edge box system that delivers a streamlined aesthetic, robust performance, and simple assembly. Designed to work with just a few components and a consistent installation process, MERIVOBOX enables the creation of versatile drawer solutions for any application.

The system is built on four key innovations: a unified platform for efficient manufacturing, a minimalist drawer design, a newly developed cabinet profile for maximum performance, and a user-friendly assembly process to ensure precision and ease.

Thanks to its L-shaped cabinet profile, MERIVOBOX provides outstanding stability and seamless functionality. Recognised for its award-winning design, it’s the ideal choice for modern cabinetry projects where quality and appearance matter.

• Steel drawer sides available in Silk White Matt, Indium Grey Matt, and Orion Grey Matt
• Contemporary and distinctive slim drawer side design
• Straight internal surfaces with flush cover cap for a clean finish
• Synchronised feather-light glide for smooth operation
• Clip-on front attachment – works even when the pull-out is already in place
• 3-way front adjustment for easy and precise alignment
• Soft-close BLUMOTION cabinet profile with compatibility for TIP-ON BLUMOTION and side stabilisation
• Fully compatible with the SERVO-DRIVE opening support system

• Runner system: MERIVOBOX cabinet profile
• Dynamic load bearing: 70kg
• Nominal length: 500mm
• Cabinet profile length: 401.25mm
• Pull-out type: Full extension
• Motion technology: BLUMOTION / compatible with TIP-ON BLUMOTION
• Finish: Zinc plated
• Material: Steel
• Assembly type: Side mounted with screws
• Cabinet profile width: 26.5mm
• Designed for use with locking devices
• Hook position (from end of runner): 0.5mm
• Minimum internal cabinet depth: 503mm
• Supplied in pairs (Right + Left)
• Packaging: Commercial packing
