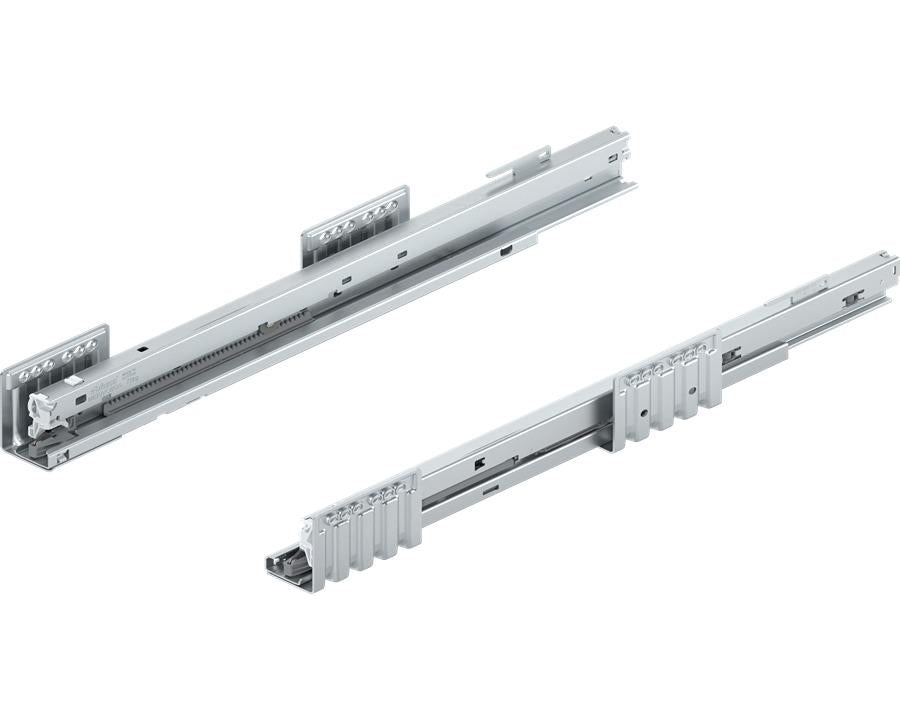

Blum MERIVOBOX Over Extension Carcase Runner Set 450mm 70kg. 453.4501BZ W&B

MERIVOBOX Drawer System – by Wilson and Bradley

MERIVOBOX is Blum’s advanced box system that blends modern design, high load capacity, and intuitive assembly. With only a few components and a consistent installation process, it allows for the efficient creation of a broad range of drawer configurations.

The system integrates four core innovations: a streamlined manufacturing platform, a minimalist and refined drawer side, a newly developed cabinet profile for optimal functionality, and a smart assembly approach designed to boost installation efficiency.

The L-shaped cabinet profile ensures strength and versatility, while the consistent assembly process and sleek appearance have earned MERIVOBOX recognition for both innovation and design.

Whether you're building drawers for kitchens, bathrooms, or commercial spaces, MERIVOBOX helps turn your design visions into reality with ease.

• Steel drawer sides available in Silk White, Indium Grey, and Orion Grey
• Unique, contemporary drawer side design
• Straight internal surfaces with a flush cover cap
• Smooth, synchronised feather-light glide
• Quick front installation with clip-on function — works even when the pull-out is already mounted
• 3-way front adjustment for exact alignment
• Soft-close BLUMOTION cabinet profile with interface for TIP-ON BLUMOTION and side stabilisation
• Compatible with the SERVO-DRIVE electric opening support system

• Runner system: MERIVOBOX cabinet profile
• Dynamic load bearing: 70kg
• Nominal length: 450mm
• Cabinet profile length: 364.25mm
• Pull-out type: Full extension
• Motion technology: BLUMOTION / compatible with TIP-ON BLUMOTION
• Finish: Zinc plated
• Material: Steel
• Drawer runner version: Special hook position
• Mounting: Side-mounted with screws
• Cabinet profile width: 26.5mm
• Designed for use with locking devices
• Hook position (from end of runner): 50.5mm
• Minimum internal cabinet depth: 453mm
• Supplied in pairs (Right + Left)
• Packaging: Commercial packing
