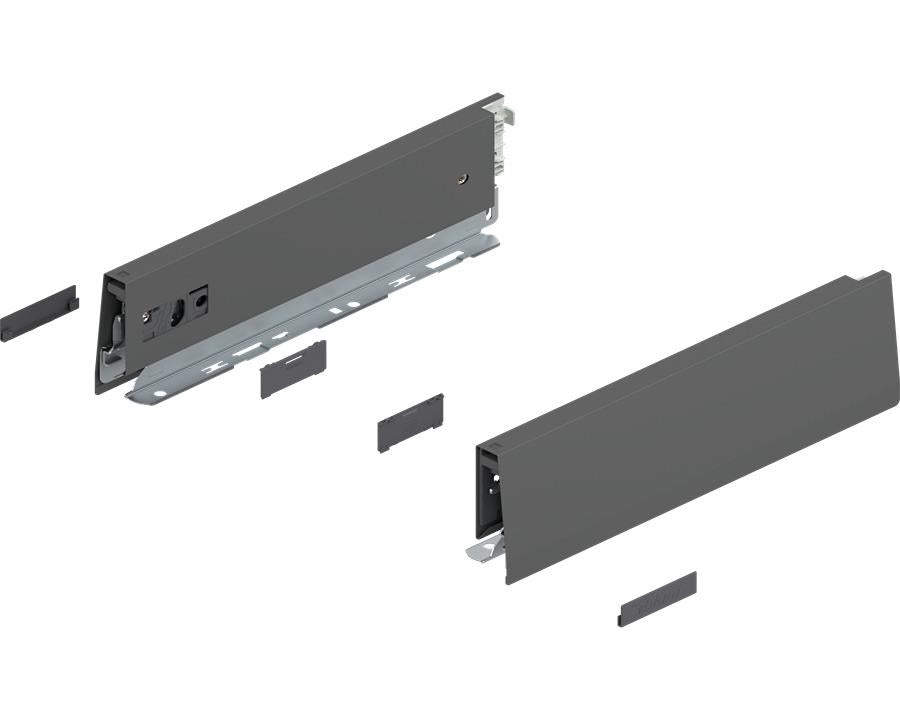

Blum MERIVOBOX N Height Drawer Sides Orion Grey 500mm 470N5002S by W&B

MERIVOBOX by Wilson and Bradley
The MERIVOBOX drawer system combines slim, modern styling with high strength and simple, consistent assembly. Its modular platform design allows a wide variety of drawer configurations using minimal components—ideal for efficient, flexible manufacturing.

With four core innovations—streamlined production, minimalist design, a functional cabinet profile, and intuitive assembly—MERIVOBOX is engineered for performance and ease of use. The L-shaped cabinet profile boosts stability while keeping the overall design clean and uniform.

Whether you're building standard drawers or deep pull-outs, the platform makes customization straightforward. MERIVOBOX helps turn design concepts into reality with a balance of function and aesthetics.

Product Highlights:
● Sleek, slim drawer side with straight inner wall and flush cover cap
● Smooth-running motion with synchronized glide
● Built-in soft-close via integrated BLUMOTION
● Compatible with SERVO-DRIVE and TIP-ON BLUMOTION
● Clip-on front panel for easy attachment—even after installation
● Tool-free assembly with 3D front adjustment

Technical Specifications:
● Drawer side type: MERIVOBOX (N height: 68.5 mm)
● Material: Steel with orion grey matt finish
● Drawer length: Nominal 500 mm (internal: 490 mm)
● Bottom thickness: 16 mm
● Front connection: Front fixing bracket
● Back connection: Clip-on system (suits steel or timber backs)
● Base connection: Prong or screw-on
● Height adjustment: Included
● Cover caps: ABD.100 (external), ZA4.540 (internal) – enclosed
● Packaging: Right + Left drawer sides in commercial pack
