Blum MERIVOBOX M Height Drawer Sides Orion Grey 270mm 470M2702S by W&B

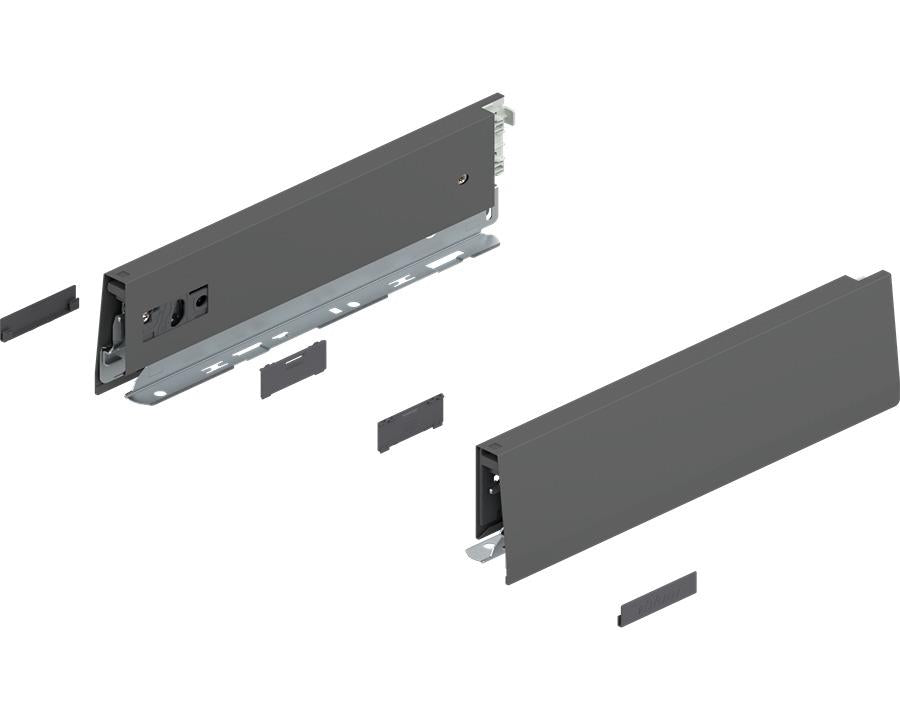

MERIVOBOX Drawer System – 270mm (M Height) – Orion Grey Matt
By Wilson and Bradley

Blum’s MERIVOBOX system offers the perfect blend of modern aesthetics, high stability, and ease of use. Designed as a streamlined platform with minimal components, MERIVOBOX allows for fast, consistent assembly while supporting a broad range of applications and design variations.

The award-winning L-shaped cabinet profile and tool-free front installation ensure seamless integration and performance. With premium soft-close functionality and compatibility with Blum’s motion technologies, MERIVOBOX enhances both form and function in cabinetry design.

• Distinctive drawer side design with a straight inner wall and flush cover cap
• Integrated BLUMOTION for smooth, soft-close operation
• Synchronised feather-light glide system
• Tool-free frontal installation – simply clip the front in place, even when the drawer is installed
• Compatible with SERVO-DRIVE and TIP-ON BLUMOTION
• 3-way front adjustment (height, side, tilt)
• Easy, uniform assembly across all sizes

• Box type: MERIVOBOX drawer side
• Drawer side height: M (91mm)
• Nominal drawer length: 270mm
• Internal drawer length: 260mm
• Material: Steel
• Finish: Orion Grey Matt
• Design: Plain
• Base panel thickness: 16mm
• Base connection: Prong connection or screw-on
• Front connection: Front fixing bracket
• Back connection: Clip-on (for steel or wooden back fixing bracket)
• Height adjustment: Yes
• Back fixing bracket finish: Natural
• Included accessories:
  • ABD.100 external cover caps
  • ZA4.540 internal cover caps
• Packaging: Right + Left set
• Pack type: Commercial packing
