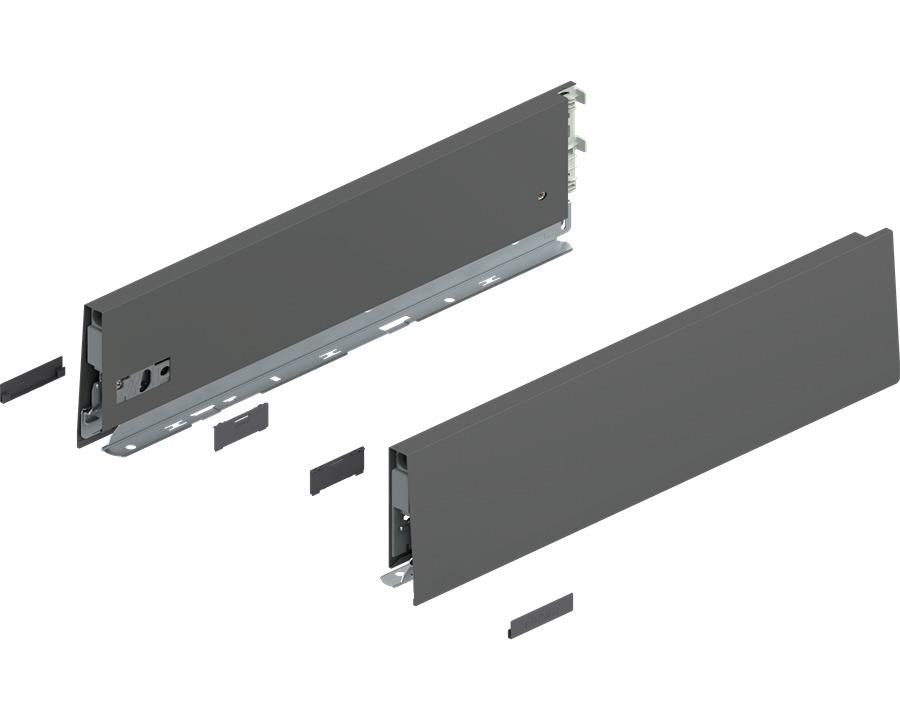

Blum MERIVOBOX K Height Drawer Sides Orion Grey 550mm 470K5502S by W&B

MERIVOBOX Drawer System – 550mm (K Height) – Orion Grey Matt
By Wilson and Bradley

Blum’s MERIVOBOX is a groundbreaking drawer system that combines a slim, contemporary drawer side design with high stability and effortless assembly. This platform simplifies manufacturing and installation, enabling you to create versatile drawer configurations with just a few components.

Engineered for modern cabinetry, MERIVOBOX offers exceptional performance and refined aesthetics. The L-shaped cabinet profile enables streamlined production while maintaining consistent assembly. Built with precision and attention to design, MERIVOBOX delivers stunning results in every application.

• Distinctive slim drawer side profile for a contemporary aesthetic
• Drawer sides are straight on the inside with a flush cover cap
• Synchronised feather-light glide for ultra-smooth opening and closing
• Integrated BLUMOTION for soft, silent closing
• Compatible with SERVO-DRIVE and TIP-ON BLUMOTION motion technologies
• Frontal can be clipped on easily – even with drawer already installed
• Tool-free front assembly
• 3-dimensional front adjustment (height, side, tilt) for easy alignment

• Type of box: MERIVOBOX drawer side
• Drawer side height: K (129mm)
• Nominal drawer length: 550mm
• Internal drawer length: 540mm
• Bottom thickness: 16mm
• Material: Steel
• Design: Plain
• Finish: Orion Grey Matt
• Connection to front panel: Front fixing bracket
• Connection to back: Clip-on (steel or wooden back fixing bracket)
• Base fixing method: Prong connection or screw-on
• Height adjustment: Yes
• Back fixing bracket finish: Natural
• Additions included:
  • ABD.100 external cover caps
  • ZA4.540 internal cover caps
• Item package: Left + Right
• Packaging: Commercial packing
