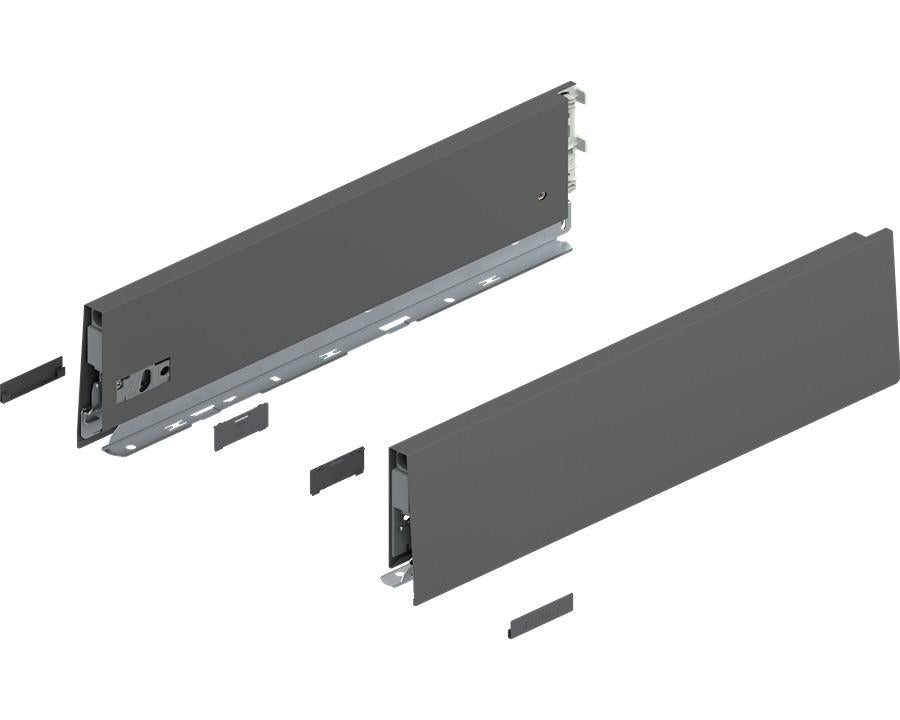

Blum MERIVOBOX K Height Drawer Sides Orion Grey 500mm 470K5002S by W&B

MERIVOBOX Drawer System – by Wilson and Bradley

Blum’s MERIVOBOX drawer system offers a unique combination of sleek, slim drawer side design, exceptional stability, and quick, consistent assembly. Built on a versatile platform with minimal components, MERIVOBOX simplifies manufacturing while delivering premium functionality and refined aesthetics.

This modern box system introduces four key innovations: a streamlined production platform, a minimalist yet bold design, an advanced cabinet profile for superior performance, and a cleverly engineered assembly process. With a distinctive L-shaped profile and uniform box concept, MERIVOBOX makes design flexibility and performance seamless.

Whether you’re building drawers or pull-outs, the consistent assembly process and elegant design mean every project is efficient and beautiful.

• Distinctive drawer side design for a modern, slim aesthetic
• Drawer sides are straight on the inside with flush cover caps
• Synchronised feather-light glide for smooth, effortless drawer motion
• Integrated BLUMOTION damping for soft and quiet closing
• Compatible with SERVO-DRIVE and TIP-ON BLUMOTION for touch-to-open functionality
• Front panel easily clips on from holding position, even if the drawer is already in place
• Tool-free front installation for faster assembly
• 3-way front adjustment (height, side, tilt) for perfect alignment

• Type of box: MERIVOBOX drawer side
• Drawer side height: K (129mm)
• Material: Steel
• Design: Plain
• Nominal drawer length: 500mm
• Internal drawer length: 490mm
• Bottom thickness: 16mm
• Drawer side finish: Orion Grey Matt
• Connection to drawer front: Front fixing bracket
• Connection to back: Clip-on (compatible with steel or wooden back fixing brackets)
• Base-to-side fixing: Prong connection or screw-on
• Height adjustment: Yes
• Back fixing bracket finish: Natural
• Included accessories:
  • ABD.100 external cover caps
  • ZA4.540 internal cover caps
• Item package: Right + Left
• Packaging: Commercial packing
