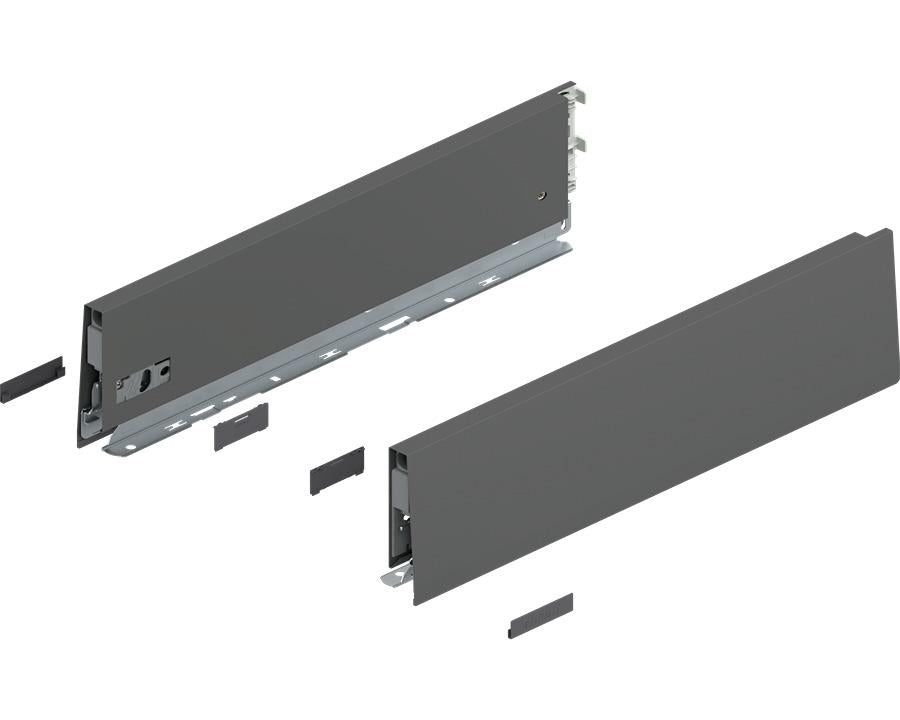

Blum MERIVOBOX K Height Drawer Sides Orion Grey 450mm 470K4502S by W&B

MERIVOBOX Drawer System – by Wilson and Bradley

Blum’s MERIVOBOX drawer system offers a perfect combination of slim, modern design, exceptional stability, and user-friendly assembly. Developed to streamline production and expand design possibilities, MERIVOBOX allows you to build a wide range of drawers using a consistent assembly method and a minimal number of components.

This next-generation system features four core innovations: a versatile platform for simplified manufacturing, a sleek minimalist aesthetic, an advanced cabinet profile for improved performance, and a well-engineered assembly concept for speed and precision.

With its unique L-shaped cabinet profile and award-winning design, MERIVOBOX enables you to create functional, visually stunning drawers with ease.

• Distinctive slim drawer side design
• Drawer side is straight on the inside with a flush cover cap for a clean finish
• Synchronised feather-light glide for smooth, effortless movement
• Integrated BLUMOTION damping system for soft-close functionality
• Compatible with SERVO-DRIVE and TIP-ON BLUMOTION for push-to-open convenience
• Simple front insertion and clip-on mechanism (even when the pull-out is already installed)
• Tool-free front installation
• 3-way front adjustment: height, side, and tilt

• Type of box: MERIVOBOX drawer side
• Drawer side height: K (129mm)
• Material: Steel
• Design: Plain
• Nominal drawer length: 450mm
• Internal drawer length: 440mm
• Bottom panel thickness: 16mm
• Drawer side finish: Orion Grey Matt
• Connection to drawer front: Front fixing bracket
• Connection to back: Clip-on (for use with steel or wooden back fixing brackets)
• Base-to-side connection: Prong connection or screw-on
• Height adjustment: Yes
• Back fixing bracket finish: Natural
• Additions included:
  • ABD.100 external cover caps
  • ZA4.540 internal cover caps
• Item package: Right + Left
• Packaging: Commercial packing
