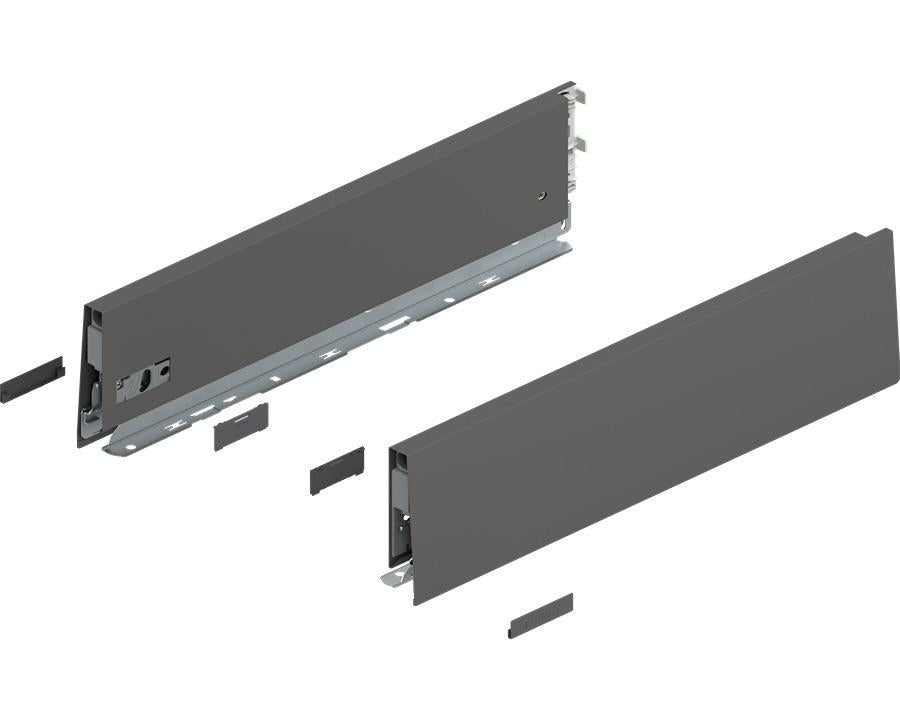

Blum MERIVOBOX K Height Drawer Sides Orion Grey 400mm 470K4002S by W&B

MERIVOBOX Drawer System – by Wilson and Bradley

Blum’s MERIVOBOX is a high-performance drawer system that blends minimalist aesthetics with structural strength and assembly efficiency. Designed to simplify manufacturing while delivering elegant results, MERIVOBOX enables a broad variety of drawer solutions with just a few modular components.

With a uniform L-shaped cabinet profile and a consistently simple assembly method, MERIVOBOX supports fast, precise installation. It features four integrated innovations: a platform for streamlined production, a clean-lined drawer design, an advanced cabinet profile, and a refined assembly concept.

Perfect for both standard and premium cabinetry, MERIVOBOX delivers functionality, durability, and award-winning design—all in one sleek system.

• Distinctive slim drawer side design
• Drawer side is straight on the inside with flush cover cap
• Synchronised feather-light glide for smooth, quiet movement
• Integrated BLUMOTION soft-close technology for effortless and silent closing
• Compatible with SERVO-DRIVE and TIP-ON BLUMOTION systems
• Simple clip-on front installation—even when the pull-out is in place
• Tool-free front assembly
• 3-way (height, side, and tilt) front adjustment for precise alignment

• Type of box: MERIVOBOX drawer side
• Drawer side height: K (129mm)
• Material: Steel
• Design: Plain
• Nominal drawer length: 400mm
• Internal drawer length: 390mm
• Drawer side finish: Orion Grey Matt
• Connection to drawer front: Front fixing bracket
• Connection to back: Clip-on (for steel or wooden back using fixing bracket)
• Bottom panel thickness: 16mm
• Base-to-side connection: Prong connection or screw-on
• Height adjustment: Yes
• Back fixing bracket finish: Natural
• Additions included:
  • ABD.100 external cover caps
  • ZA4.540 internal cover caps
• Item package: Right + Left
• Packaging: Commercial packing
