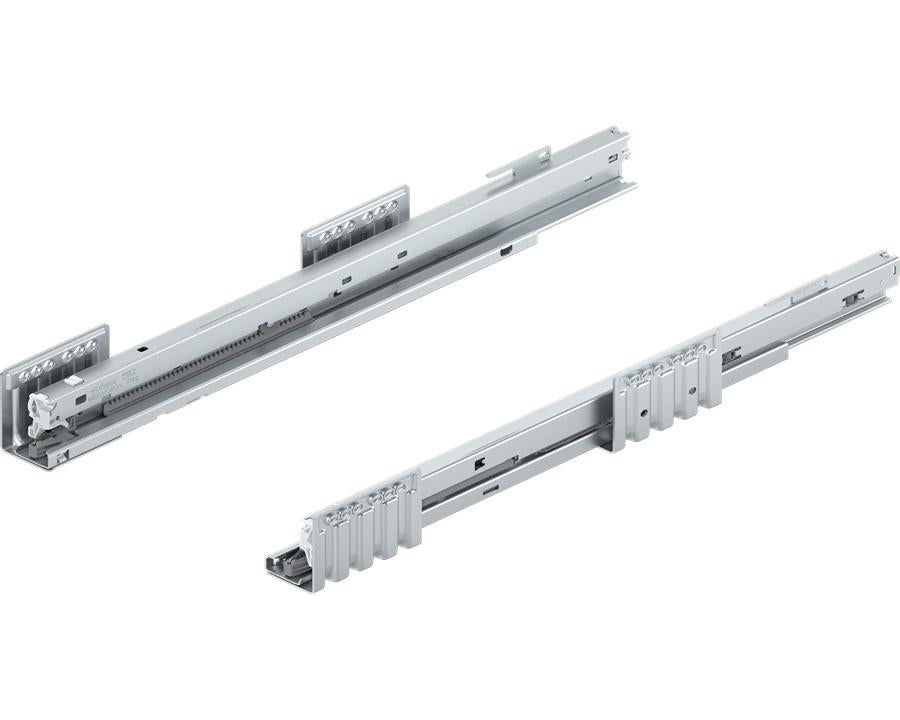

Blum MERIVOBOX Carcase Runner Set 600mm 70kg. 453.6001B by W&B

MERIVOBOX Drawer System – by Wilson and Bradley

Blum’s MERIVOBOX is a next-generation drawer system designed for flexibility, precision, and modern aesthetics. With a minimalistic slim side profile, high load capacity, and intuitive assembly, MERIVOBOX simplifies the creation of a wide variety of drawers using a unified platform.

Engineered around four core innovations—streamlined production, sleek design, a unique cabinet profile, and smart assembly—MERIVOBOX is built for performance and ease. The signature L-shaped cabinet profile provides robust support and ensures consistent installation across all applications.

Whether you're designing standard drawers or specialised pull-outs, MERIVOBOX delivers outstanding functionality paired with a refined visual appeal.

• Steel drawer sides available in Silk White, Indium Grey, and Orion Grey
• Sleek, distinctive drawer side design
• Straight inside surfaces with flush cover cap for clean aesthetics
• Synchronised feather-light glide for smooth and quiet movement
• Easy clip-on front installation—even with pull-out already installed
• 3-way front adjustment for precise alignment
• Soft-close BLUMOTION cabinet profile compatible with TIP-ON BLUMOTION and side stabilisation
• Compatible with SERVO-DRIVE electric opening system

• Type of runner system: MERIVOBOX cabinet profile
• Dynamic load bearing: 70kg
• Nominal drawer length: 600mm
• Cabinet profile length: 476.75mm
• Pull-out type: Full extension
• Motion technology: BLUMOTION / compatible with TIP-ON BLUMOTION
• Colour/finish: Zinc plated
• Material: Steel
• Number of brackets: 3
• Mounting type: Side mounted
• Cabinet profile fixing: With screws
• Cabinet profile width: 26.5mm
• Connection to drawer: For locking device
• Hook position (from runner end): 0.5mm
• Minimum internal cabinet depth: 603mm
• Item package: Right + Left
• Packaging: Commercial packing
