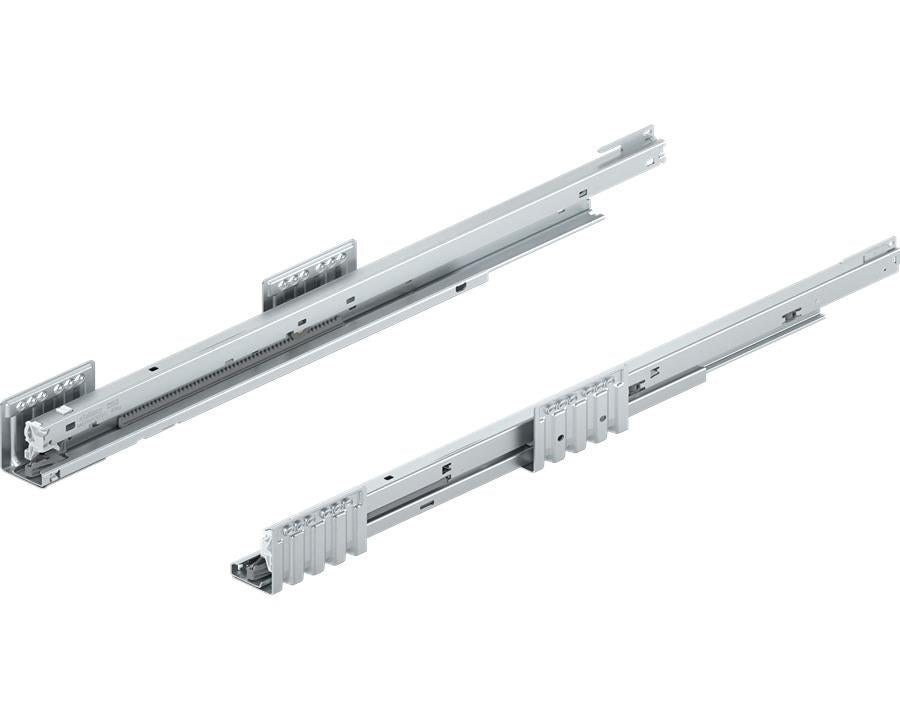

Blum MERIVOBOX Carcase Runner Set 550mm 40kg. 450.5501B W&B

MERIVOBOX Drawer System – by Wilson and Bradley

MERIVOBOX is Blum’s modern box system designed to combine streamlined aesthetics, robust performance, and user-friendly assembly. With just a few components and a consistent installation method, it’s easy to create a wide range of drawers that meet various design and functional requirements.

At the heart of MERIVOBOX are four key innovations: a unified platform that simplifies manufacturing, a minimalist drawer side for a distinctive appearance, a newly engineered cabinet profile for enhanced performance, and an intuitive assembly process that ensures efficiency and precision.

The unique L-shaped cabinet profile delivers high stability and excellent functionality, making the system suitable for a wide array of applications. Its design has been recognized for innovation and quality, making it a standout solution for modern cabinetry.

• High-quality steel drawer sides in Silk White, Indium Grey, and Orion Grey
• Distinctive drawer side design for a clean and modern aesthetic
• Straight interior surfaces with a flush cover cap
• Smooth, synchronised feather-light glide
• Easy front installation – simply clip on, even with the pull-out already installed
• 3-way adjustable front for precise alignment
• Soft-close BLUMOTION cabinet profile with interface for TIP-ON BLUMOTION and side stabilisation
• Compatible with the SERVO-DRIVE opening support system

• Runner system: MERIVOBOX cabinet profile
• Load capacity (dynamic): 40kg
• Nominal length: 550mm
• Cabinet profile length: 381.25mm
• Pull-out type: Full extension
• Motion technology: BLUMOTION / compatible with TIP-ON BLUMOTION
• Finish: Zinc plated
• Material: Steel
• Mounting: Side-mounted with screws
• Cabinet profile width: 26.5mm
• Designed for use with locking devices
• Hook position from runner end: 0.5mm
• Minimum internal cabinet depth: 553mm
• Supplied in pairs (Right + Left)
• Packaging: Commercial packing
