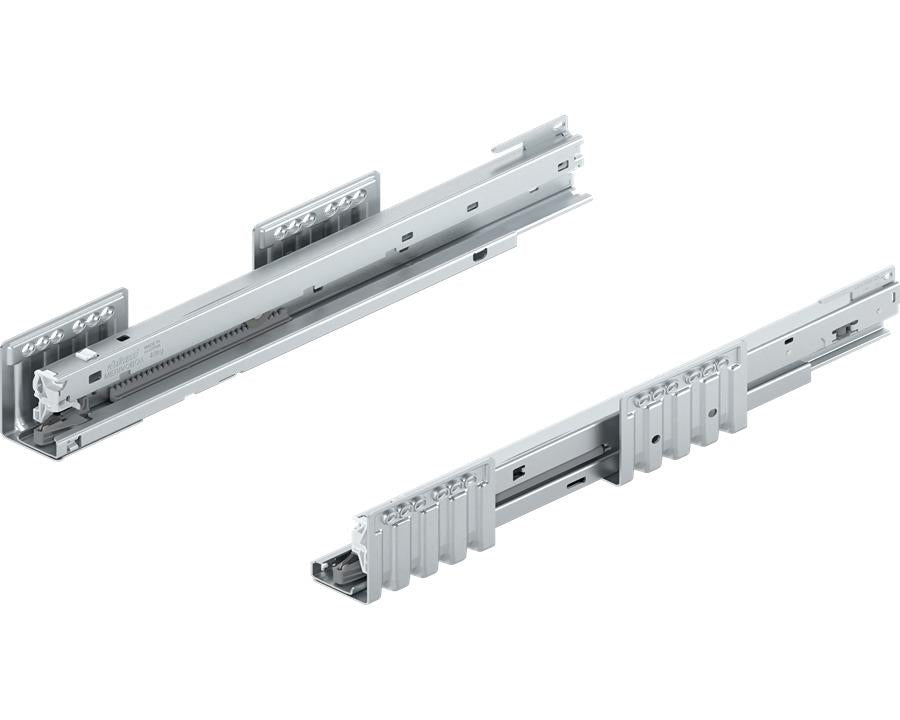

Blum MERIVOBOX Carcase Runner Set 350mm 40kg. 450.3501B by W&B

MERIVOBOX Drawer System – by Wilson and Bradley

Discover MERIVOBOX – Blum’s advanced drawer system designed to offer sleek aesthetics, exceptional strength, and effortless installation. With just a few components, you can create a wide variety of drawer solutions using one streamlined assembly method.

This next-generation system is built on four core innovations: a platform approach for easier production, a refined minimalist style, a redesigned cabinet profile for better performance, and a simplified assembly concept that ensures consistency across configurations.

The smart L-shaped cabinet profile combines functionality with visual appeal, delivering a stable, adaptable solution that has received design recognition. With MERIVOBOX, offering a diverse range of drawers and pull-outs has never been easier.

Key Features:

• Steel drawer sides available in Silk White, Indium Grey, and Orion Grey
• Clean, straight inner surface with a flush-fitting cover cap
• Smooth, synchronised motion for a light glide
• Tool-free front attachment – clip-on even if installed
• 3-way front adjustment
• Integrated BLUMOTION for soft-close, with options for TIP-ON BLUMOTION and side stabilisation
• Compatible with SERVO-DRIVE for added convenience

Specifications:

• Runner system: MERIVOBOX cabinet profile
• Dynamic load capacity: 40kg
• Nominal length: 350mm
• Cabinet profile length: 291.25mm
• Full extension slide
• Finish: Zinc plated
• Material: Steel
• Mounting type: Side-mounted (screw-fixed)
• Profile width: 26.5mm
• Designed for use with locking devices
• Hook position from runner end: 0.5mm
• Minimum cabinet depth: 353mm
• Supplied as a left and right pair
• Commercial packaging
