Blum MERIVOBOX Carcase Runner Left Hand Industrial Pack 500mm 40kg. *Must be purchased in pack quantity of 18* 450 by W&B

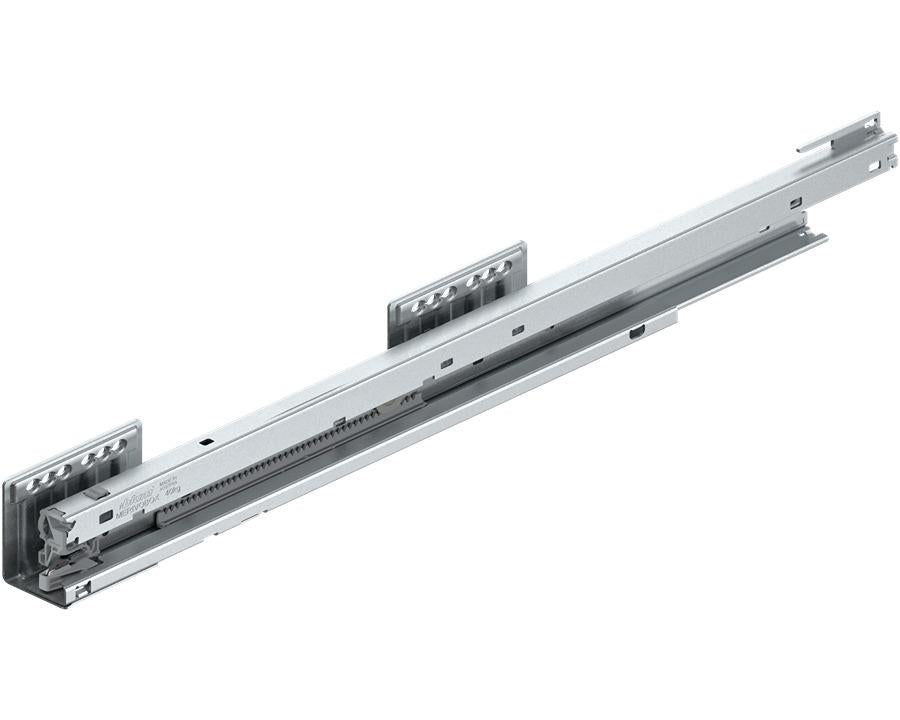

Blum MERIVOBOX Cabinet Profile – 500mm – Left Side – Zinc Plated – by Wilson and Bradley

Support your MERIVOBOX drawer system with this precision-engineered 500mm cabinet profile, designed for smooth full-extension performance and effortless installation. Crafted from zinc-plated steel, this left-side runner offers quiet, synchronised glide action and integrates with both BLUMOTION and TIP-ON BLUMOTION technologies for soft and responsive movement.

Ideal for modern cabinetry, the MERIVOBOX platform is known for its slim drawer sides, high stability, and minimal assembly steps — all of which are supported by this robust cabinet profile. Also compatible with SERVO-DRIVE and side stabilisers for enhanced motion and convenience.

Key Features:

• Strong, zinc-plated steel runner designed for long-term use
• Full extension with synchronised, feather-light glide
• Seamless integration with BLUMOTION and TIP-ON BLUMOTION
• Simple clip-on front assembly, even post-installation
• 3D front adjustment for precision alignment
• Compatible with SERVO-DRIVE and stabilisation systems
• Works with Silk White, Indium Grey, and Orion Grey drawer sides

 Specifications:

• Runner System: MERIVOBOX cabinet profile
• Nominal Length: 500mm
• Dynamic Load Capacity: 40kg
• Motion Technology: With BLUMOTION / for TIP-ON BLUMOTION
• Pull-out Type: Full extension
• Material: Steel
• Finish: Zinc Plated
• Runner Length: 355.75mm
• Mounting Type: Side mounted
• Fixing Method: With screws
• Bracket Count: 2
• Profile Width: 26.5mm
• Connection Type: For locking device
• Hook Position: 0.5mm from end
• Minimum Internal Cabinet Depth: 503mm
• Package Includes: Left-side runner
• Packaging: Industrial packing
