Blum MERIVOBOX, BOXFIX plus ZMM.2500 by W&B

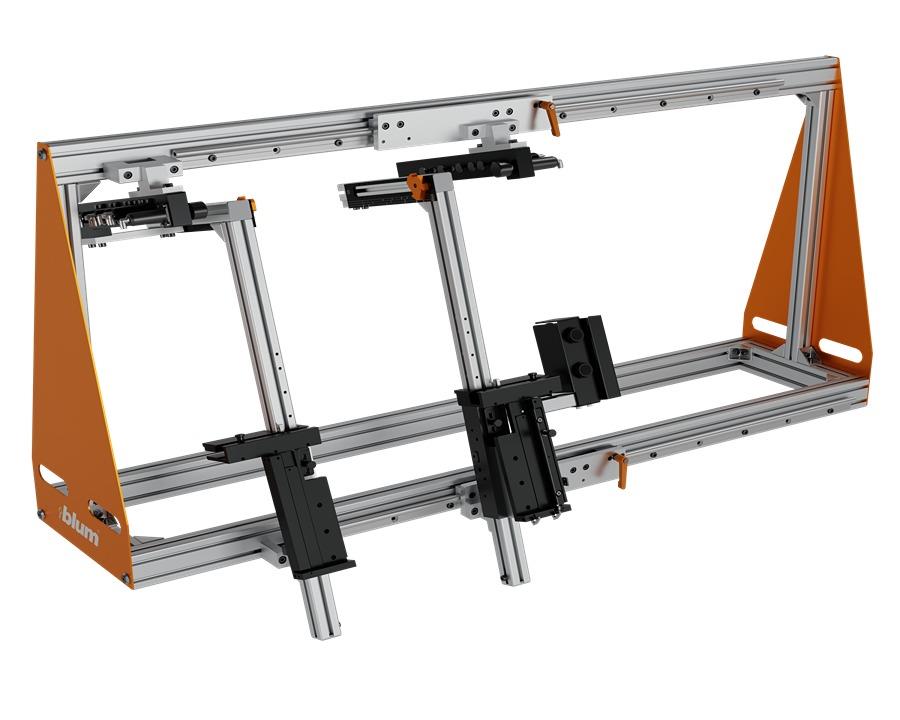

MERIVOBOX Assembly Device by Wilson and Bradley

Blum’s innovative MERIVOBOX box system combines a sleek, slim drawer side with superior stability and simplified assembly. It enables the creation of a wide range of drawers using just a few components, all while keeping the assembly process easy and efficient.

MERIVOBOX integrates four groundbreaking innovations: a streamlined manufacturing platform, a minimalist design for a clean and modern look, a new cabinet profile that enhances functionality, and a well-designed assembly system for straightforward implementation.

The L-shaped cabinet profile offers maximum functionality and uniformity across the entire box platform, simplifying assembly, making adjustments effortless, and ensuring MERIVOBOX stands out with its award-winning design.

With MERIVOBOX, offering a variety of drawer solutions is easier than ever. This platform makes the manufacturing and assembly of drawers and pull-outs straightforward, meeting every need while combining outstanding functionality with stunning design. MERIVOBOX brings your ideas—and those of your customers—to life.

Key Features:

• Pneumatic device for assembling drawers and high-front pull-outs
• Nominal lengths: 270mm to 650mm
• Cabinet widths: 250mm to 1200mm
• Back heights: Up to 250mm (compatible with both wood and steel)
• Available for drawer base thicknesses of 18mm upon request

Technical Specifications:

• Assembly device type: BOXFIX plus
• Device style: Table device
• Control method: Pneumatic drive
• Assembly style: 3-sided, nail-on
• Connection pressure: 6 bar to 7 bar
• Safety certification: CE declaration of conformity
• Model: Series OA
• Compatible with: LEGRABOX, MERIVOBOX, and TANDEMBOX
• Drawer side length: 270mm to 650mm
• Cabinet width: 250mm to 1200mm
• Back thickness: 16mm
• Shelf thickness: 16mm
• Weight: 64kg
• Conformity mark: CE (on serial tag)
