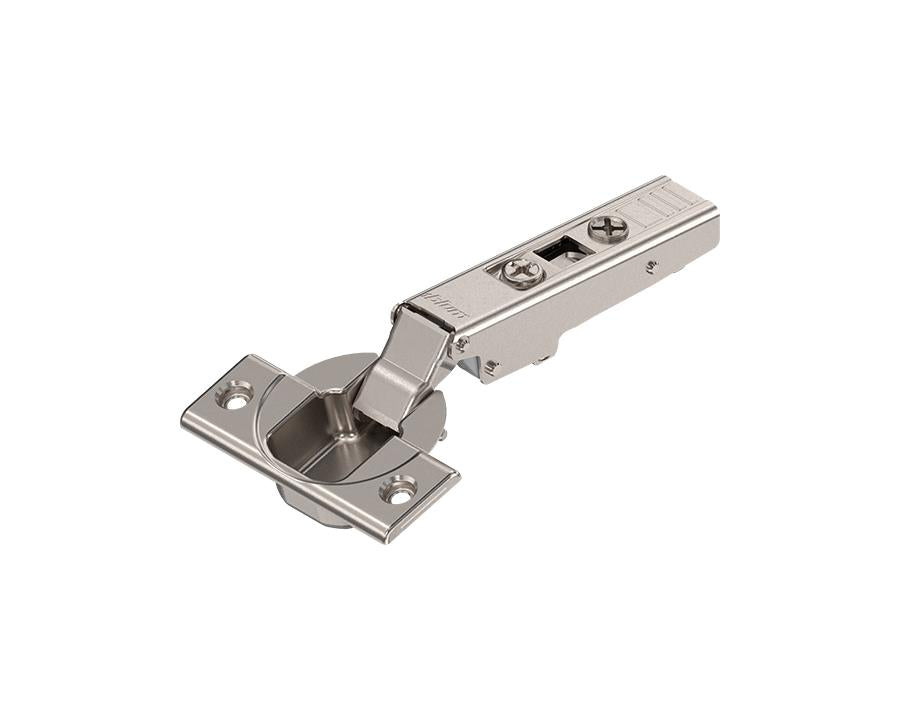

Blum CLIP top Standard Hinge 110° Unsprung, Full Overlay, Screw-On 70T3550 *Use with Tip-ON for Doors* by W&B

Blum Hinge Systems: Precision, Innovation, and Seamless Functionality by Wilson & Bradley

Wilson & Bradley presents Blum's exceptional hinge systems, crafted with innovative engineering to provide unmatched reliability, flexibility, and ease of installation. Featuring 3-dimensional adjustment, Blum's hinges offer superior precision for a variety of applications, including wood, glass, and aluminum frame doors, as well as both thin and thick doors. Designed to endure over 200,000 opening and closing cycles, they are perfect for various configurations, including blind corner and angled doors.

Blum’s TIP-ON motion technology allows for elegant, handle-less front designs, while the CLIP system ensures easy, tool-free assembly. With Blum hinges, every door opens and closes smoothly, delivering a seamless and reliable user experience.

Key Features:

• Tested to endure over 200,000 cycles of opening and closing
• Ideal for a wide range of materials, including wood, glass, and aluminum
• TIP-ON technology enables handle-less doors
• 3-dimensional adjustment for precise alignment
• CLIP mechanism for easy, tool-free assembly

Technical Specifications:

• Application: Standard hinge
• Cranking: Overlay application
• Opening angle: 110°
• Closing mechanism: Unsprung
• Hinge variant: With free movement for TIP-ON
• Cover cap types: 90M2503, 70.1503, 70T3504 (boss cover cap)
• Boss material: Steel
• Boss finish: Nickel plated
• Boss assembly: Screw-on
• Flange dimensions:
  • Width: 57mm
  • Length: 22mm
  • Height: 3.2mm
• Hinge boss drilling diameter: 35mm
• Fixing holes diameter: 8mm
• Distance between drillings: 45mm
• Eccentric position of fixing holes to hinge boss hole: 9.5mm
• Boss drilling depth: 13mm
• Minimum drilling distance: 3mm
• Maximum drilling distance: 7mm
• Arm material: Steel
• Arm finish: Nickel plated
• Collision measurement (hinge arm height): 21.5mm
• Fixed dimension/factory setting: 11mm
• Side adjustment: +/- 2mm (with screw)
• Depth adjustment: Convenient with spiral screw (+3/-2mm)
• Gap: 1.5mm
• Item package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately
