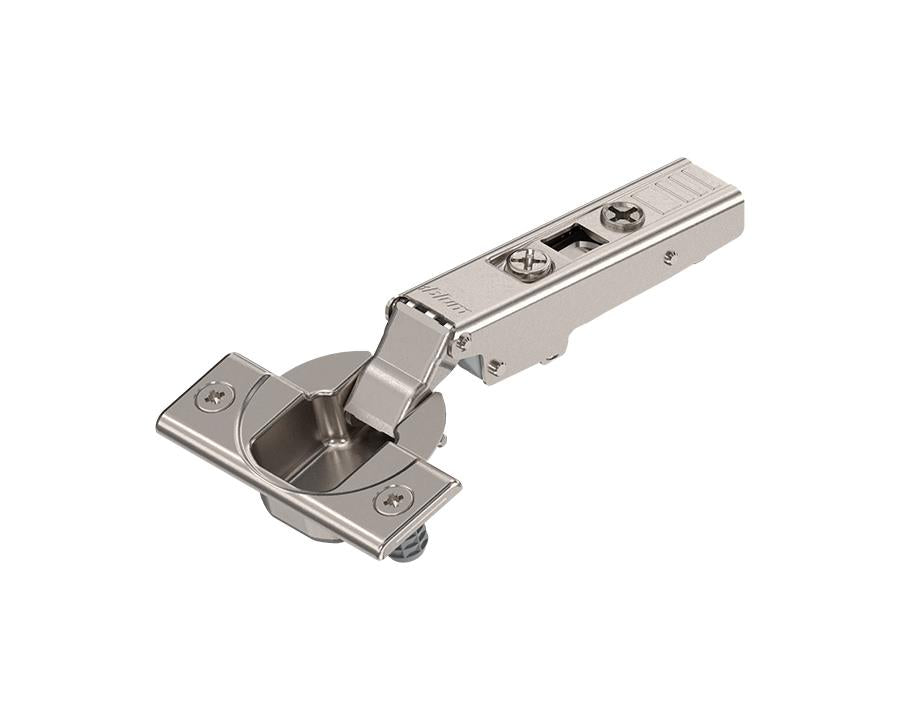

Blum CLIP top Standard Hinge 110° Unsprung, Full Overlay, Knock-In 70T3580 *Use with Tip-ON for Doors* by W&B

Blum Hinge Systems: Innovation and Precision by Wilson & Bradley

Blum’s hinge systems are the result of ingenious engineering, offering unrivaled functionality, design, and ease of installation. With 3-dimensional adjustment, Blum hinges provide flexibility for precise door alignment, making them the go-to solution for wood, glass, and aluminum frame doors, as well as both thin and thick doors. Built to endure 200,000 opening and closing cycles, these hinges are also ideal for special applications like blind corner and angled doors.

Blum’s CLIP top sprung hinges are compatible with all CLIP mounting plates, offering easy side, height, and depth adjustments through a spiral screw. With several mounting plates featuring cam height adjustment, you can attach and remove doors quickly and without tools. Blum's tried-and-tested CLIP mechanism ensures tool-free, rapid, and simple assembly, guaranteeing reliable and smooth operation with every use.

Key Features:

• Tested to withstand over 200,000 cycles of opening and closing
• Compatible with all CLIP mounting plates
• 3-dimensional adjustment for perfect door alignment
• Easy, tool-free assembly and removal
• Cam height adjustment available with select mounting plates

Technical Specifications:

• Application: Standard hinge
• Cranking: Overlay application
• Opening angle: 110°
• Closing mechanism: Unsprung
• Hinge variant: With free movement for TIP-ON
• Cover cap types: 90M2503, 70.1503, 70T3504 (boss cover cap)
• Boss material: Steel
• Boss finish: Nickel plated
• Boss assembly: Knock-in
• Flange dimensions:
  • Width: 57mm
  • Length: 22mm
  • Height: 3.2mm
• Hinge boss drilling diameter: 35mm
• Fixing holes diameter: 8mm
• Distance between drillings: 45mm
• Eccentric position of fixing holes to hinge boss hole: 9.5mm
• Boss drilling depth: 13mm
• Minimum drilling distance: 3mm
• Maximum drilling distance: 7mm
• Arm material: Steel
• Arm finish: Nickel plated
• Collision measurement (hinge arm height): 21.5mm
• Fixed dimension/factory setting: 11mm
• Side adjustment: +/- 2mm (with screw)
• Depth adjustment: Convenient with spiral screw (+3/-2mm)
• Gap: 1.5mm
• Item package: 1 piece
• Packaging: Commercial packing
