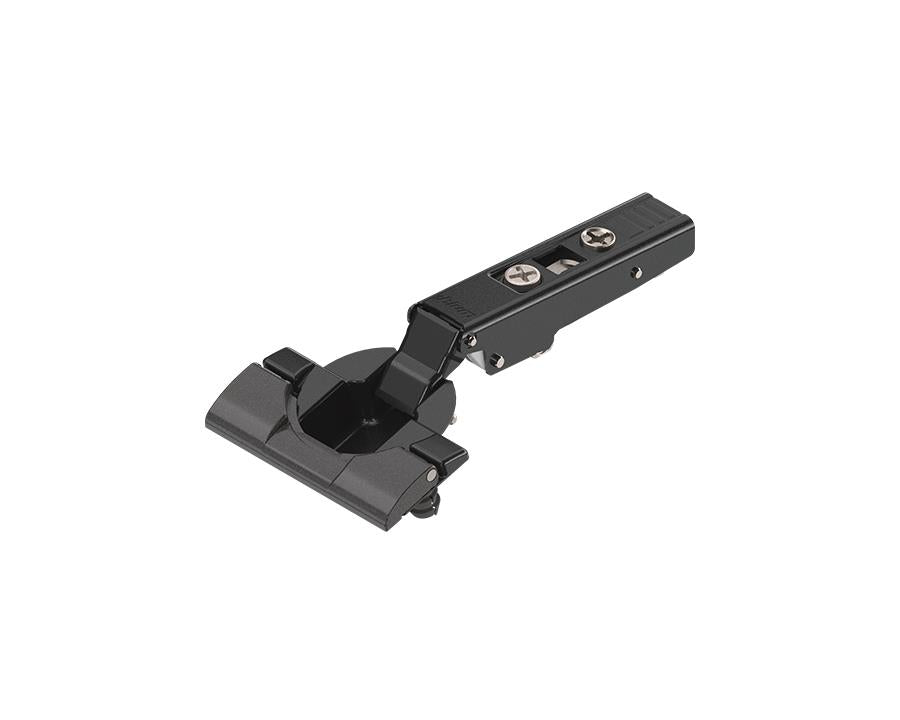

Blum CLIP top Standard Hinge 110° Unsprung , Full Overlay, INSERTA. In onyx black 70T3590 *Use with Tip-ON for Doors* by W&B

Blum Hinge Systems: Precision, Durability, and Innovative Design by Wilson & Bradley

Blum’s hinge systems are engineered to deliver exceptional performance and design, offering superior functionality, ease of adjustment, and sleek aesthetics. With 3-dimensional adjustability, these hinges provide flexibility and accuracy, making them a perfect fit for a wide range of door applications—wood, glass, aluminum frames, and both thin and thick doors. Special solutions are available for blind corners and angled door installations.

The advanced TIP-ON motion technology allows for handle-free fronts, adding a modern, minimalist touch to any space. Blum’s reliable CLIP mechanism ensures quick, tool-free assembly, making door-to-cabinet installation effortless. Every door fitted with Blum hinges opens and closes with dependable ease.

Key Features:

• Tested to withstand 200,000 opening and closing cycles for lasting durability
• Suitable for a wide variety of door applications, including wood, glass, and aluminum frames
• TIP-ON technology enables sleek, handle-less designs
• 3-dimensional adjustment for precise alignment
• CLIP mechanism allows for quick, tool-free assembly

Technical Specifications:

• Application: Standard hinge
• Cranking: Overlay application
• Opening angle: 110°
• Closing mechanism: Unsprung
• Hinge variant: With free movement for TIP-ON
• Cover cap types: 90M2503, 70.1503
• Boss material: Steel
• Boss finish: Onyx black
• Boss assembly: Inserta
• Flange dimensions:
  • Width: 57mm
  • Length: 27.5mm
  • Height: 6.4mm
• Hinge boss drilling diameter: 35mm
• Fixing holes diameter: 8mm
• Distance between drillings: 45mm
• Eccentric position of fixing holes to hinge boss hole: 9.5mm
• Boss drilling depth: 13mm
• Minimum drilling distance: 3mm
• Maximum drilling distance: 7mm
• Arm material: Steel
• Arm finish: Onyx black
• Collision measurement (hinge arm height): 21.5mm
• Fixed dimension/factory setting: 11mm
• Side adjustment: +/- 2mm (with screw)
• Depth adjustment: Convenient with spiral screw (+3/-2mm)
• Gap: 1.5mm
• Item package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately
