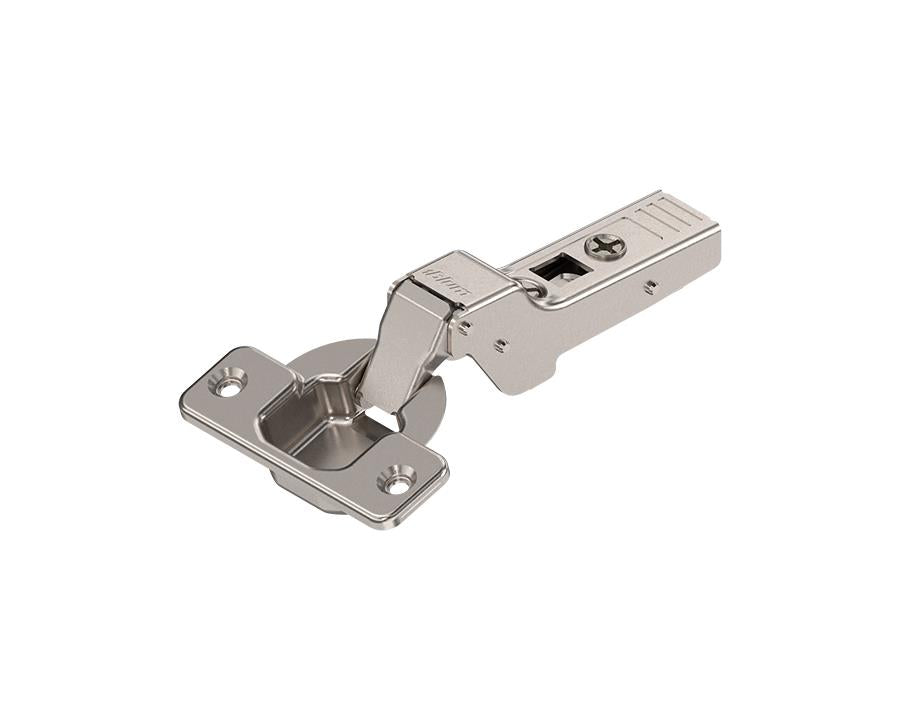

Blum CLIP top Standard Hinge 107 Degree. Half Overlay. Boss: Screw-On by W&B

Blum Hinge Systems by Wilson and Bradley

Blum’s innovative hinge systems combine functionality, reliability, and precision. Designed for enhanced adjustment and seamless assembly, our hinges offer 3-dimensional adjustment, ensuring flexibility in every installation.

Built to endure 200,000 opening and closing cycles, Blum hinges provide durable solutions for a range of applications, including wood, glass, aluminum frame doors, and both thin and thick doors. We also offer specialized solutions for blind corners and angled configurations.

CLIP top sprung hinges are compatible with all CLIP mounting plates and provide easy side, height, and depth adjustment via a spiral screw. Several mounting plates also offer cam height adjustment, allowing for quick, tool-free attachment and removal of doors.

With Blum’s proven CLIP mechanism, assembly becomes tool-free, fast, and efficient, ensuring smooth operation every time.

Features:

• Durability: Rigorously tested for over 200,000 cycles
• Versatility: Suitable for a wide range of applications
• Adjustability: Precise 3-dimensional adjustment
• Tool-free assembly: Quick and easy installation with Blum’s CLIP system

Specifications:

• Application: Standard hinge for overlay doors
• Opening Angle: 107°
• Closing Mechanism: Spring-assisted
• Cover Cap Types: 94M3603, 70.1503 (BPC10021)
• Boss Material: Steel, nickel-plated
• Boss Assembly: Screw-on
• Flange Dimensions: Width 57mm, Length 30.5mm, Height 3.2mm
• Hinge Boss Drilling: Diameter 35mm, Drilling Depth 11.5mm
• Drill Hole Spacing: 45mm, eccentric position (9.5mm)
• Side Adjustment: +/- 2mm with screw
• Depth Adjustment: +3/-2mm with spiral screw
• Gap: 1.5mm
• Item Package: 1 piece (industrial packaging)

Note: Plates sold separately.
