Blum CLIP top Centre Hinge Set For AVENTOS Overhead Stay Bi-Fold Systems 134 Degree, Unsprung. Boss: Screw-On 78Z5500T12 by W&B

AVENTOS HF Lift System by Wilson and Bradley

The AVENTOS HF Lift System by Wilson and Bradley offers premium motion for wall cabinets, providing effortless access to contents and full freedom of movement. Its intuitive design ensures even large and heavy fronts open with ease.

Integrated with BLUMOTION, the AVENTOS HF system enhances the opening and closing experience, making it both smooth and silent. The 104° and 83° opening angle stops minimize the space needed above the cabinet, while wide lift systems open effortlessly, stay in place, and close quietly, all thanks to BLUMOTION.

Perfect for cabinet heights ranging from 480 to 1040 mm and widths up to 1800 mm, AVENTOS HF is ideal for custom applications throughout the home.

Features:

• Fast and simple installation with CLIP technology
• Balanced design allows fronts to remain in the desired position
• Silent and effortless closing with BLUMOTION
• Suitable for high and mid-sized wall units
• Compatible with aluminium, wood-glass combinations, and asymmetrical fronts

Specifications:

• Application: Centre hinge for AVENTOS bi-fold lift systems
• Opening Angle: 134°
• Closing Mechanism: Unsprung
• Cover Cap Type: 90M2503 & 70.1503
• Boss Material: Zinc
• Boss Finish: Nickel-plated
• Boss Assembly: Screw-on
• Flange Width: 57 mm
• Flange Length: 20 mm
• Flange Height: 3 mm
• Diameter of Hinge Boss Drilling: 35 mm
• Distance Between Drillings: 45 mm
• Eccentric Position of Fixing Holes: 9.5 mm
• Boss Drilling Depth: 12.6 mm
• Minimum Drilling Distance: 3 mm
• Maximum Drilling Distance: 6 mm
• Arm Material: Steel
• Arm Finish: Nickel-plated
• Collision Measurement (Hinge Arm Height): 21 mm
• Type of Side Adjustment: Screw-based (+/- 2 mm)
• Type of Depth Adjustment: Convenient spiral screw (+1.5/-3 mm)
• Hinge Accessories: Mounting plate 17SH3100 and furniture hinge 70T5550.TL enclosed

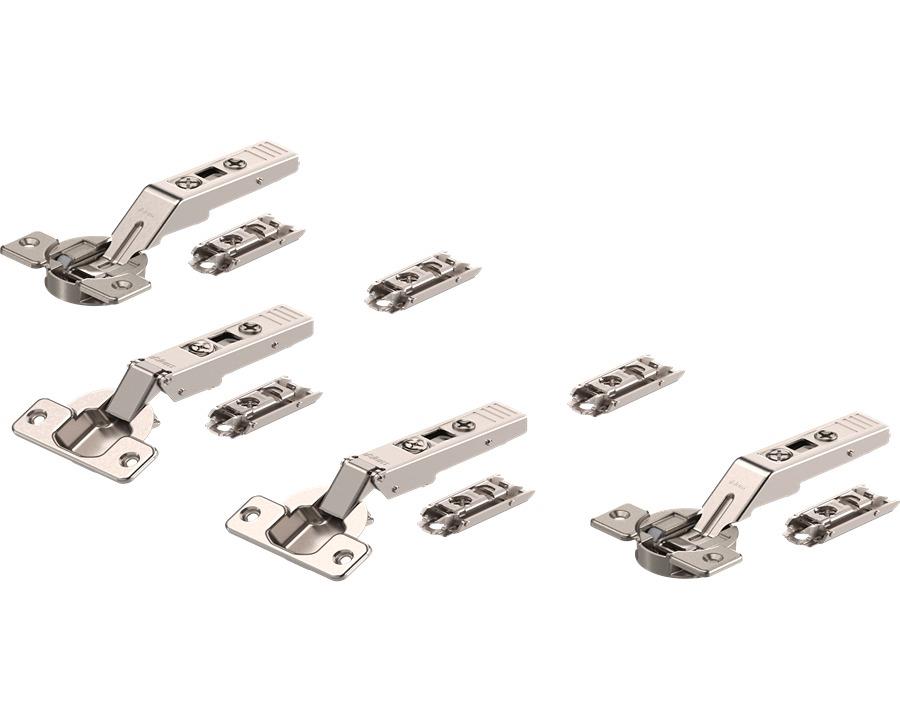

• Item Package: 2 per set (2 CLIP centre hinges, 2 CLIP 120° hinges, 6 MPL)
• Packaging: Printed bag and carton, commercial packing

Note: All plates are sold separately.
