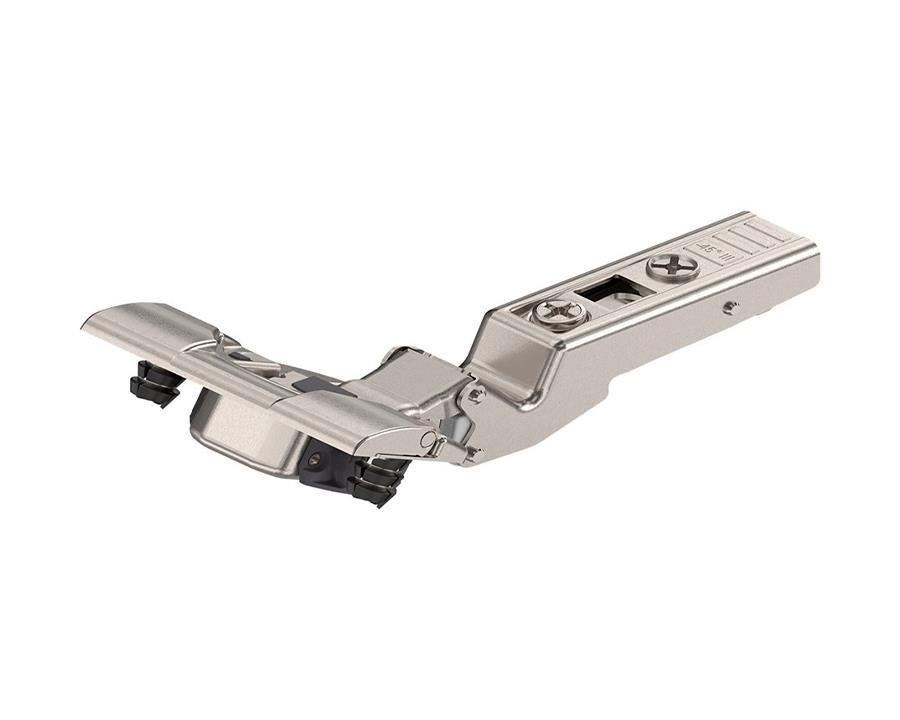

Blum CLIP top BLUMOTION Soft Close Angled Hinge -45 Degree Iii, Full Overlay. Boss: INSERTA 79B3490 by W&B

Wilson and Bradley Angled Hinge with BLUMOTION

Innovative engineering defines Wilson and Bradley’s Angled Hinges, designed to offer a perfect balance of performance and aesthetics. Our hinge systems allow for precise 3-dimensional adjustment, providing easy and reliable functionality for a wide range of door types, including wood, glass, and aluminum frame doors.

Built to last, these hinges can endure over 200,000 opening and closing cycles, making them ideal for both thin and thick doors. Whether you're designing a corner application or needing angled solutions, these hinges deliver durability and ease of use.

With integrated BLUMOTION technology, these hinges offer smooth closing action, regardless of door size or the force used to close them. The INERTA mechanism ensures a quick and tool-free installation. Simply snap doors on and off, adjust with ease, and enjoy reliable, long-lasting performance.

Key Features:

• Durability: Tested for over 200,000 cycles, ensuring long-lasting performance.
• Adjustable: 3-dimensional adjustment for a perfect fit.
• Tool-Free: Easy installation with the INERTA system.
• Smooth Closing: Integrated BLUMOTION for a quiet and controlled close.

Specifications:

• Application: Angled hinge
• Cranking: Maximum overlay
• Opening Angle: 110°
• Closing Mechanism: Spring-loaded
• Hinge Variant: Integrated BLUMOTION
• Cover Cap Types: 90M2603, 70.1553
• Boss Material: Steel, Nickel-plated
• Boss Assembly: INSERTA
• Flange Width: 57mm
• Flange Length: 27.5mm
• Flange Height: 6.4mm
• Hinge Boss Drilling: 35mm diameter
• Fixing Hole Diameter: 8mm
• Distance Between Fixings: 45mm
• Eccentric Position of Fixing Holes: 9.5mm
• Boss Drilling Depth: 13mm
• Cabinet Angle: -45°
• Fixed Dimension/Factory Setting: 6.2mm
• Side Adjustment: +/- 2mm (with screw)
• Depth Adjustment: +/- 2mm (with spiral screw)
• Gap: 1.5mm
• Packaging: Commercial packing
• Item Package: 1 piece

Note: All plates are sold separately.
