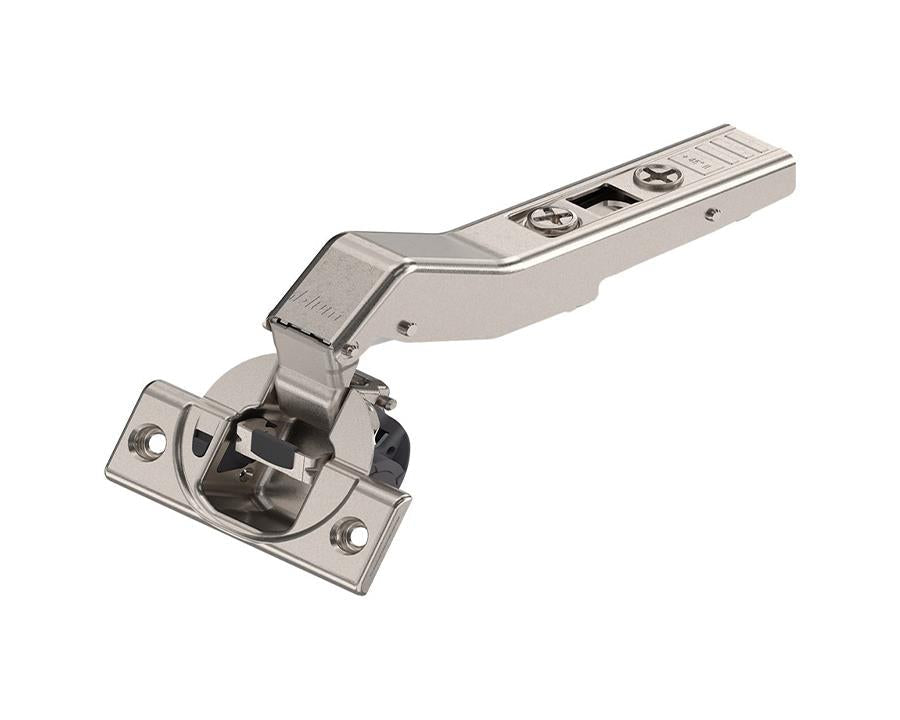

Blum CLIP top BLUMOTION Soft Close Angled Hinge 45 Degree Ii, Full Overlay. Boss: Screw-On 79B3558 by W&B

Wilson and Bradley Angled Hinge with BLUMOTION

Wilson and Bradley hinge systems bring together reliability, innovation, and elegance for superior cabinet functionality. Our hinges feature advanced 3-dimensional adjustability, making installation and fine-tuning effortless. Built to endure over 200,000 opening and closing cycles, these hinges are perfect for a wide variety of applications, including wood, glass, and aluminium frame doors. They also cater to specific needs like blind corner and angled doors.

The BLUMOTION feature ensures that all doors close smoothly, no matter their size or the force with which they are closed. With a range of angles from -50° to 50°, the speed of door closure can be customized by deactivating BLUMOTION on one or both hinges. The CLIP mechanism allows for quick, tool-free assembly, while the 3-dimensional adjustment feature ensures precise door alignment for an impeccable finish.

Features:

• Durable Performance: Tested to last over 200,000 cycles for reliable, long-lasting use.
• Versatile Fit: Ideal for wood, glass, and metal frame doors, as well as both thin and thick doors.
• Smooth Operation: BLUMOTION ensures quiet, smooth closing of doors with adjustable speed.
• Easy Installation: Tool-free, quick assembly with CLIP technology.
• Flexible Adjustment: 3-dimensional adjustment for perfect alignment.

Specifications:

• Application: Angled hinge
• Cranking: Maximum overlay
• Opening Angle: 110°
• Closing Mechanism: Spring-assisted
• Hinge Variant: With integrated BLUMOTION
• Cover Cap Types: 70.1503 (BPC10021), 90M2603, 70T3504 (BHBC)
• Boss Material: Nickel-plated steel
• Boss Assembly: INSERTA
• Flange Width: 57mm
• Flange Length: 22mm
• Flange Height: 3.2mm
• Hinge Boss Drilling Diameter: 35mm
• Fixing Hole Diameter: 8mm
• Distance Between Drillings: 45mm
• Eccentric Fixing Position: 9.5mm
• Boss Drilling Depth: 13mm
• Cabinet Angle: 45°
• Fixed Dimension: -1.5mm (factory setting)
• Side Adjustment: +/- 1.8mm (with screw)
• Depth Adjustment: +/- 2mm (with spiral screw)
• Gap: 1.5mm
• Item Package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately.
