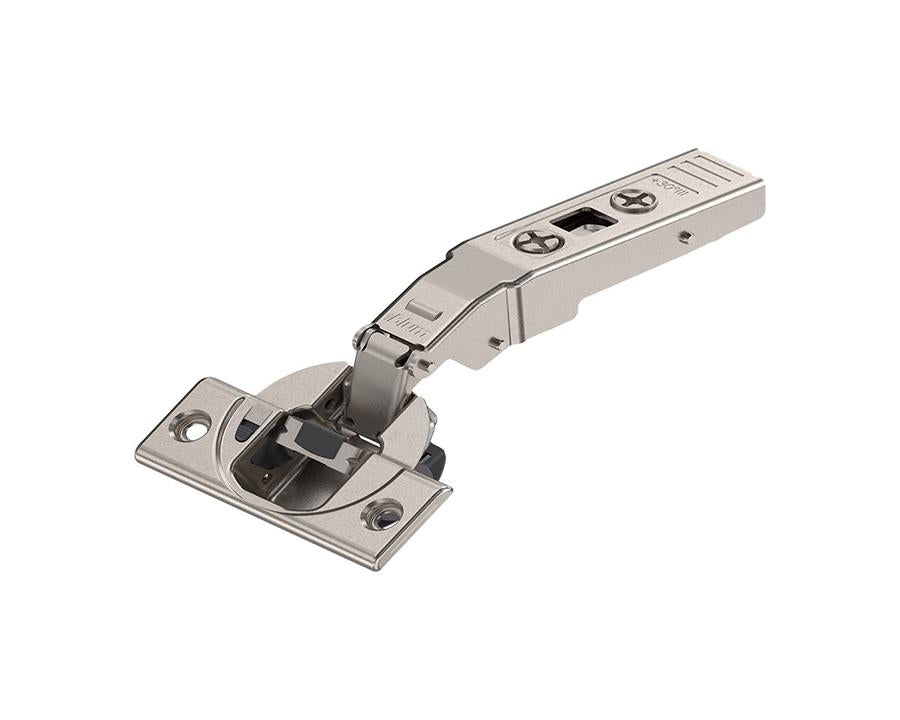

Blum CLIP top BLUMOTION Soft Close Angled Hinge 30 Degree Iii, Full Overlay. Boss: Screw-On 79B9456 by W&B

Wilson & Bradley Hinges: Precision, Durability, and Ease of Use

Wilson & Bradley hinges are engineered for superior functionality, featuring cutting-edge technology that ensures seamless door movement and enhanced adjustability. Designed for various applications, including wood, glass, and aluminum frame doors, our hinges offer precision and reliability.

With the ability to withstand 200,000 cycles, these hinges are built to endure high-use environments, providing consistent performance over time. Whether you're dealing with thin or thick doors, or specialized needs like angled or blind corner applications, Wilson & Bradley offers adaptable hinge solutions.

The BLUMOTION feature ensures smooth, soft closing, accommodating doors of any size or weight. Easily adjustable, it can be turned off on one or both hinges to customize the door’s closing speed. The CLIP technology simplifies door installation and removal, while precise three-dimensional and cam adjustments ensure perfect alignment every time.

Key Features:

• Durability: Built to last, tested over 200,000 cycles for enduring performance.
• Versatile Applications: Suitable for wood, glass, aluminum, and more.
• Easy Adjustability: Three-dimensional adjustment for precise fitting.
• Tool-Free Assembly: CLIP technology allows for quick, easy installation.

Specifications:

• Application: Angled hinge
• Cranking: Maximum overlay
• Opening Angle: 95°
• Closing Mechanism: Spring-assisted
• Hinge Variant: With integrated BLUMOTION
• Cover Cap Types: 90M2603, 70.1553, 70T3504 (BHBC)
• Boss Material: Nickel-plated steel
• Flange Dimensions: 57mm width, 22mm length, 3.2mm height
• Hinge Boss Drilling: 35mm diameter
• Side Adjustment: +/- 2mm (screw-in)
• Depth Adjustment: +/- 2mm (spiral screw)
• Package: 1 piece per item, commercial packing

Note: All plates are sold separately.
