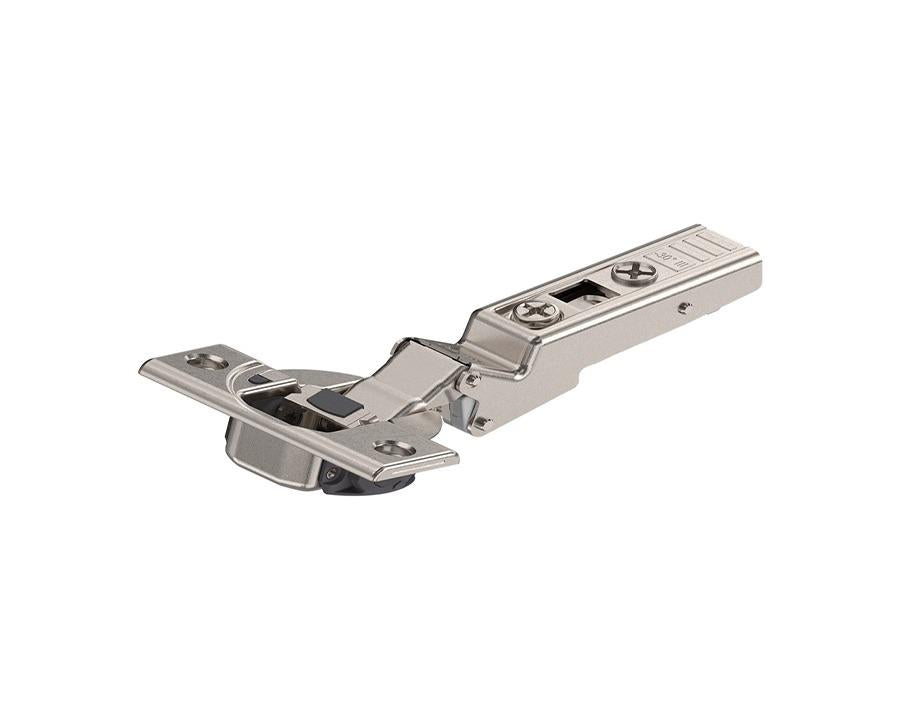

Blum CLIP top BLUMOTION Soft Close Angled Hinge -30 Degree Iii, Full Overlay. Boss: Screw-On 79B3451 by W&B

Angled Hinge with BLUMOTION by Wilson and Bradley

Wilson and Bradley's innovative hinge systems combine high functionality with exceptional ease of use. Designed to provide precise, reliable performance, these hinges feature 3-dimensional adjustments for seamless installation and operation. Constructed to withstand over 200,000 opening and closing cycles, these hinges are perfect for various applications, including wood, glass, and aluminum frame doors. Specialized options are also available for angled and blind corner configurations.

The BLUMOTION technology ensures smooth and controlled closing, adjusting to the dynamics of each door, regardless of its size or weight. With angles ranging from -50° to 50°, the soft-close feature can be easily deactivated to customize door movement speed. Assembly is quick and tool-free thanks to the CLIP mechanism, making installation a breeze.

Key Features:

• Proven Durability: Withstands 200,000 cycles for long-lasting performance.
• Versatile Application: Suitable for all door types, with options for special configurations.
• Soft-Close Action: BLUMOTION ensures gentle and controlled door closure.
• Easy Installation: CLIP mechanism allows tool-free assembly with 3-dimensional adjustments.

Specifications:

• Application: Angled hinge
• Overlay Cranking: Maximum
• Opening Angle: 110°
• Closing Mechanism: Spring-loaded
• Hinge Variant: With integrated BLUMOTION
• Cover Cap Type: 90M2603, 70.1553, 70T3504 (Boss Cover Cap - BHBC)
• Boss Material: Steel, Nickel Plated
• Boss Assembly: Screw-on
• Flange Width: 57mm
• Flange Length: 22mm
• Flange Height: 3.2mm
• Hinge Boss Drilling: 35mm diameter
• Fixing Holes: 8mm diameter, 45mm distance between
• Cabinet Angle: -30°
• Side Adjustment: +/- 2mm (Screw adjustment)
• Depth Adjustment: +/- 2mm (Spiral screw)
• Gap: 1.5mm
• Item Package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately.
