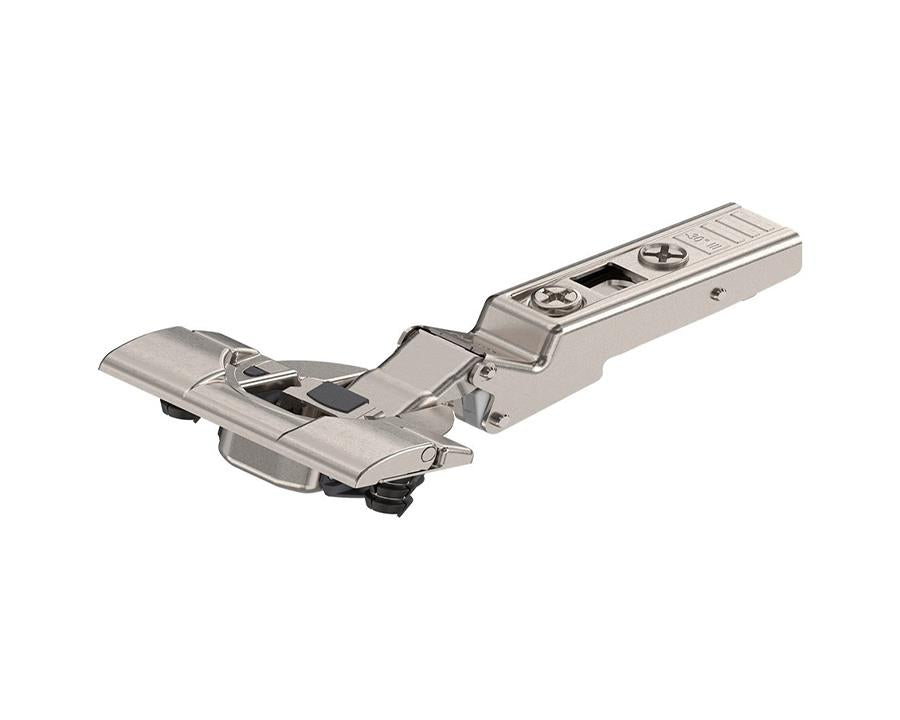

Blum CLIP top BLUMOTION Soft Close Angled Hinge -30 Degree Iii, Full Overlay. Boss: INSERTA 79B3491 by W&B

Wilson and Bradley Angled Hinge with BLUMOTION

Wilson and Bradley hinges combine innovative engineering with durable functionality to create a system that enhances cabinet performance and design. The hinges are built to withstand over 200,000 opening and closing cycles, ensuring lasting reliability for wood, glass, aluminum frame, and thick or thin doors. We also provide specialized solutions for angled and corner applications.

The BLUMOTION feature ensures smooth, controlled door closing, regardless of size, weight, or closing force. Available in a wide range of angle settings from -50° to 50°, it’s possible to deactivate the BLUMOTION feature on one or both hinges for precise control over door closure speed. Plus, with CLIP technology, these hinges are quick to install and adjust, making door-to-cabinet assembly a breeze.

Features:

• Durable: Tested for over 200,000 cycles to ensure long-lasting performance.
• Flexible: 3-dimensional adjustment for precise alignment.
• Easy Assembly: Tool-free installation with CLIP system.
• Smooth Operation: Integrated BLUMOTION provides soft closing, regardless of door size or force.

Specifications:

• Application: Angled hinge
• Cranking: Maximum overlay
• Opening Angle: 110°
• Closing Mechanism: Spring-loaded
• Hinge Variant: With integrated BLUMOTION
• Cover Cap Types: 90M2603, 70.1553
• Boss Material: Nickel-plated steel
• Boss Assembly: INSERTA
• Flange Width: 57mm
• Flange Length: 27.5mm
• Flange Height: 6.4mm
• Hinge Boss Drilling: 35mm diameter
• Fixing Hole Diameter: 8mm
• Fixing Hole Distance: 45mm
• Eccentric Fixing Position: 9.5mm
• Boss Drilling Depth: 13mm
• Cabinet Angle: -30°
• Fixed Dimension/Factory Setting: 9mm
• Side Adjustment: +/- 2mm (with screw)
• Depth Adjustment: +3/-2mm (with spiral screw)
• Gap: 1.5mm
• Item Package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately
