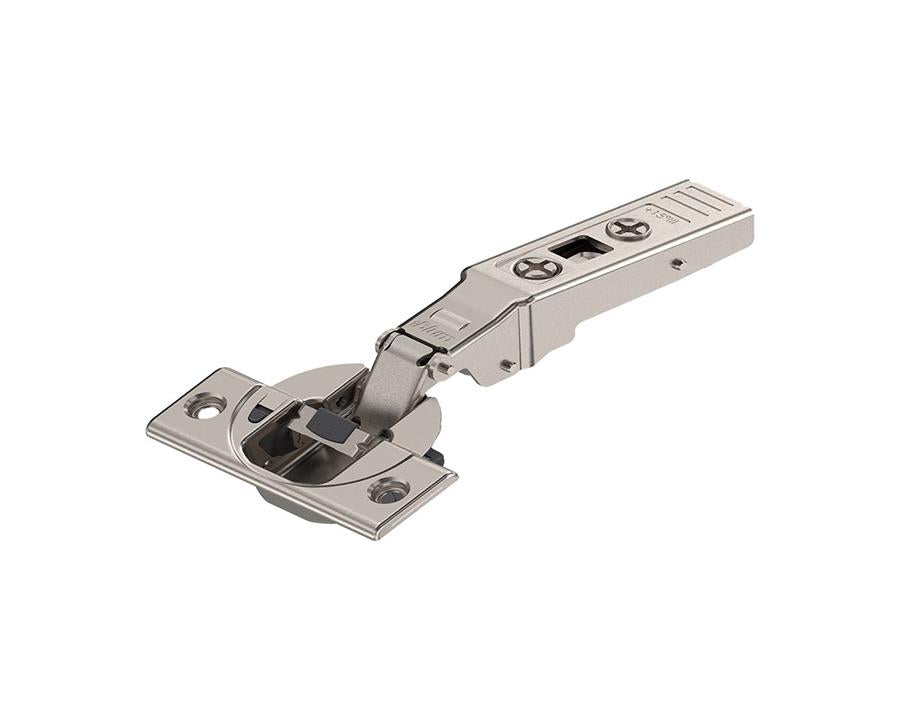

Blum CLIP top BLUMOTION Soft Close Angled Hinge 15 Degree Iii, Full Overlay. Boss: Screw-On 79B9454 by W&B

Innovative Hinges by Wilson & Bradley: Designed for Precision and Durability

At Wilson & Bradley, we combine cutting-edge design and function to create high-performance hinge systems that deliver consistent, reliable operation. Our hinges provide exceptional 3-dimensional adjustment, allowing precise door alignment and smooth functionality for various applications, including wood, glass, and aluminum frame doors.

Built to endure over 200,000 opening and closing cycles, our hinge range is suitable for a variety of projects, from thin to thick doors, as well as specialized installations like angled and blind corner applications.

Our BLUMOTION technology ensures a smooth, soft-closing action, regardless of the door’s size, weight, or closing force. The feature is customizable, with the option to deactivate it on one or both hinges for tailored performance. With CLIP technology, doors can be installed and removed quickly and easily, saving time during the assembly process.

Key Features:

• Durability: Tested to last through 200,000 cycles, providing long-lasting reliability.
• Versatility: Ideal for various materials including wood, glass, and aluminum.
• Precise Adjustment: Three-dimensional adjustment for seamless door alignment.
• Effortless Installation: Tool-free assembly with CLIP technology for fast, easy fitting.

Specifications:

• Application: Angled hinge
• Cranking: Maximum overlay
• Opening Angle: 95°
• Closing Mechanism: Spring-assisted
• Hinge Variant: Integrated BLUMOTION
• Cover Cap Types: 90M2603, 70.1553, 70T3504 (BHBC)
• Boss Material: Nickel-plated steel
• Flange Dimensions: 57mm width, 22mm length, 3.2mm height
• Hinge Boss Drilling: 35mm diameter
• Side Adjustment: +/- 2mm (screw-in)
• Depth Adjustment: +/- 2mm (spiral screw)
• Package: 1 piece per item, commercial packing

Note: All plates are sold separately.
