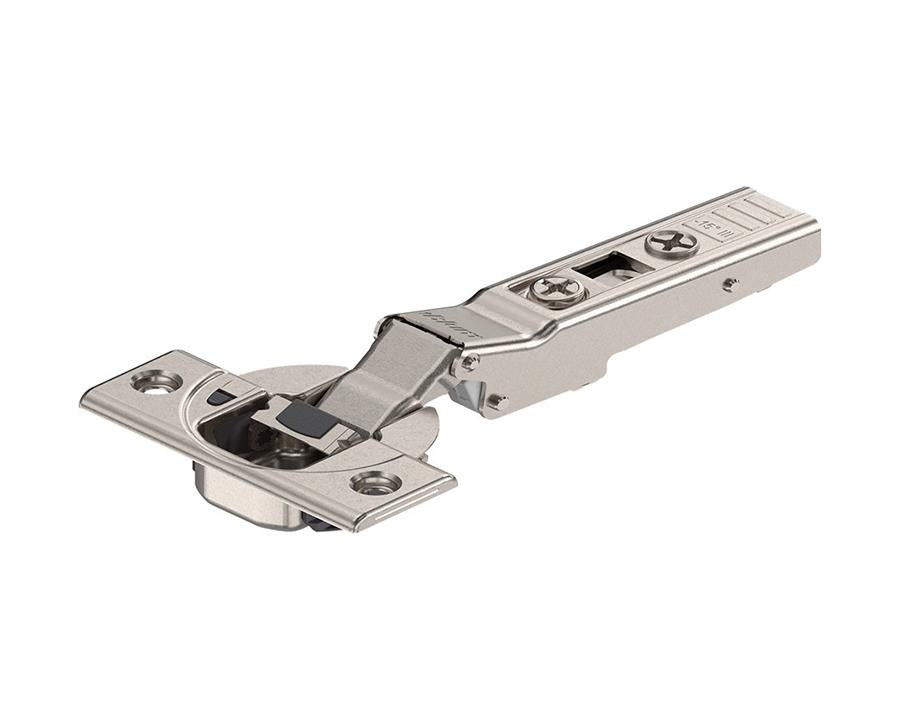

Blum CLIP top BLUMOTION Soft Close Angled Hinge -15 Degree, Full Overlay. Boss: Screw-On 79B3453 by W&B

Angled Hinge with BLUMOTION by Wilson and Bradley

Wilson and Bradley's Angled Hinges combine functionality and design excellence. These hinges are engineered to provide smooth, controlled closing and easy, tool-free installation. Designed for precision, they ensure 3-dimensional adjustment, offering a custom fit for various applications, including wood, glass, and aluminum frame doors.

With BLUMOTION technology, each door closes gently regardless of size, weight, or force, creating a seamless experience. These hinges can be installed easily using the CLIP system, with no tools required, making assembly quick and simple.

Key Features:

• Durability: Tested for over 200,000 opening and closing cycles for long-lasting performance.
• Versatile: Suitable for wood, glass, and aluminum doors, including angled and special applications.
• Smooth Closing: Integrated BLUMOTION feature for controlled closing.
• Tool-Free Assembly: CLIP technology allows quick, hassle-free installation with 3-dimensional adjustments.

Specifications:

• Application: Angled hinge
• Cranking: Maximum overlay
• Opening Angle: 110°
• Closing Mechanism: Spring-loaded
• Hinge Variant: With integrated BLUMOTION
• Cover Cap Type: 90M2603, 70.1553, 70T3504 (Boss Cover Cap - BHBC)
• Boss Material: Steel, Nickel Plated
• Boss Assembly: Screw-on
• Flange Width: 57mm
• Flange Length: 22mm
• Flange Height: 3.2mm
• Hinge Boss Drilling: 35mm diameter
• Fixing Holes: 8mm diameter, 45mm distance between
• Cabinet Angle: -15°
• Side Adjustment: +/- 2mm (Screw adjustment)
• Depth Adjustment: +/- 2mm (Spiral screw)
• Gap: 1.5mm
• Item Package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately
