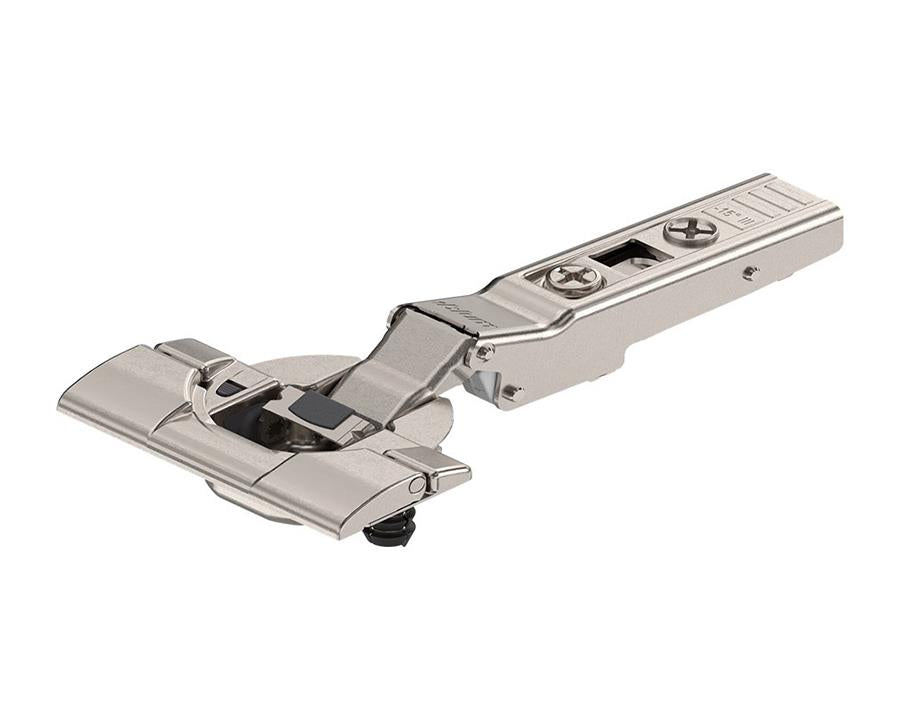

Blum CLIP top BLUMOTION Soft Close Angled Hinge -15 Degree, Full Overlay. Boss: INSERTA 79B3493 by W&B

Wilson and Bradley Angled Hinge with BLUMOTION

Wilson and Bradley's cutting-edge hinge systems offer exceptional functionality for modern cabinetry. Our hinges combine ease of installation, 3-dimensional adjustability, and smooth, reliable performance. They are engineered to withstand 200,000 opening and closing cycles, ensuring long-lasting durability for a variety of door types, including wood, glass, and aluminum frame doors. We also provide specialized solutions for applications like blind corners and angled doors.

The BLUMOTION feature ensures that all doors close gently, no matter their size, weight, or the force with which they are closed. With angles ranging from -50° to 50°, the BLUMOTION system can be deactivated on one or both hinges for fine-tuned control over closing speed. CLIP technology makes assembly tool-free, fast, and simple, and the 3-dimensional adjustments ensure precision alignment every time.

Features:

• Tested for Durability: Withstands over 200,000 cycles for exceptional reliability.
• Versatile: Suitable for all types of doors, including wood, glass, and metal.
• Smooth Closing: BLUMOTION feature adapts to door dynamics for a soft close, regardless of door size.
• Easy Installation: Tool-free assembly with CLIP technology.
• Adjustable: Offers 3-dimensional adjustments for perfect door alignment.

Specifications:

• Application: Angled hinge
• Cranking: Maximum overlay
• Opening Angle: 110°
• Closing Mechanism: Spring-loaded
• Hinge Variant: Integrated BLUMOTION
• Cover Cap Types: 90M2603, 70.1553
• Boss Material: Nickel-plated steel
• Boss Assembly: INSERTA
• Flange Width: 57mm
• Flange Length: 27.5mm
• Flange Height: 6.4mm
• Hinge Boss Drilling Diameter: 35mm
• Fixing Hole Diameter: 8mm
• Drilling Distance: 45mm between holes
• Eccentric Fixing Position: 9.5mm
• Boss Drilling Depth: 13mm
• Cabinet Angle: -15°
• Fixed Dimension: 10mm (factory setting)
• Side Adjustment: +/- 2mm (with screw)
• Depth Adjustment: +3/-2mm (with spiral screw)
• Gap: 1.5mm
• Item Package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately
