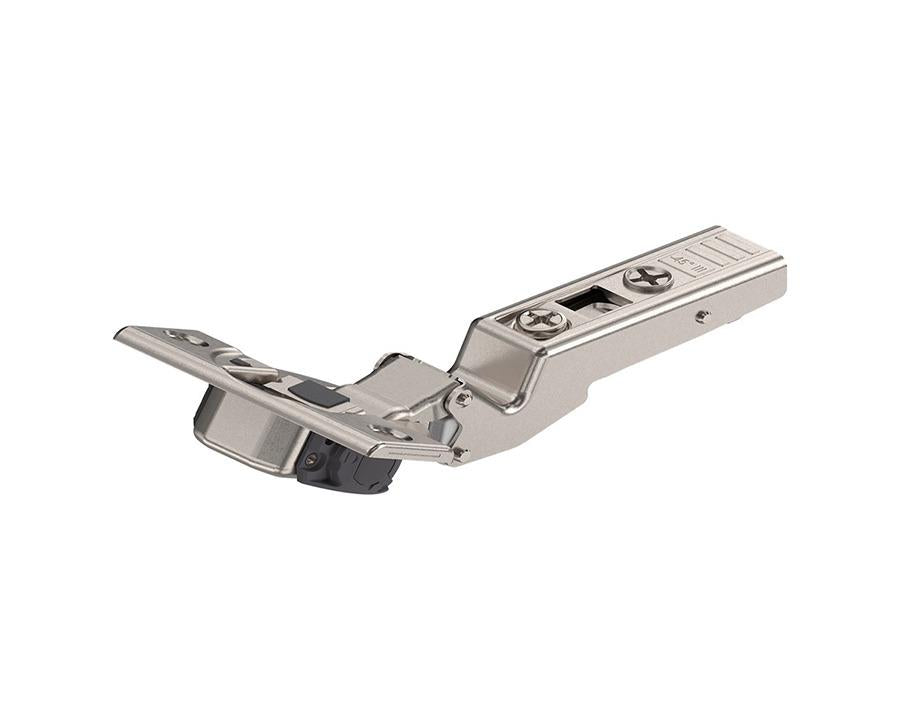

Blum CLIP top BLUMOTION Angled Soft Close Hinge -45 Degree Iii, Full Overlay. Boss: Screw-On 79B3450 by W&B

By Wilson and Bradley - Angled Hinge with Soft Close

Wilson and Bradley's innovative hinge systems combine functionality, precision, and ease of use. Our hinges are designed to provide reliable performance, effortless adjustments, and seamless assembly, all while maintaining a sleek and attractive appearance.

These hinges are rigorously tested to endure over 200,000 cycles of opening and closing, making them suitable for a wide range of applications including wood, glass, aluminum frame doors, and both thin and thick panels. Special configurations for angled or blind corner applications are also available.

The CLIP top Soft Close system ensures smooth, controlled door movement, regardless of size or force applied. With a wide range of angles (-50° to 50°), the Soft Close feature can be easily deactivated for personalized speed adjustments. The quick, tool-free assembly is made possible through our CLIP mechanism, ensuring easy installation and long-lasting function.

Key Features:

• Durable and Reliable: Over 200,000 cycles of testing for maximum durability.
• Versatile Application: Ideal for all types of cabinet doors, including special configurations.
• Smooth Closing Action: Soft-close mechanism for a controlled, gentle close.
• Quick and Easy Assembly: CLIP technology enables tool-free, fast installation with adjustable features.

Specifications:

• Application: Angled hinge
• Overlay Cranking: Maximum
• Opening Angle: 110°
• Closing Mechanism: With spring
• Hinge Variant: With integrated Soft Close
• Cover Cap Type: 90M2603, 70.1553, 70T3504 (Boss Cover Cap - BHBC)
• Boss Material: Steel, Nickel Plated
• Boss Assembly: Screw-on
• Flange Width: 57mm
• Flange Length: 22mm
• Flange Height: 3.2mm
• Hinge Boss Drilling: 35mm diameter
• Fixing Holes: 8mm diameter, 45mm distance between
• Cabinet Angle: -45°
• Side Adjustment: +/- 2mm (Screw adjustment)
• Depth Adjustment: +/- 2mm (Spiral screw)
• Gap: 1.5mm
• Item Package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately.
