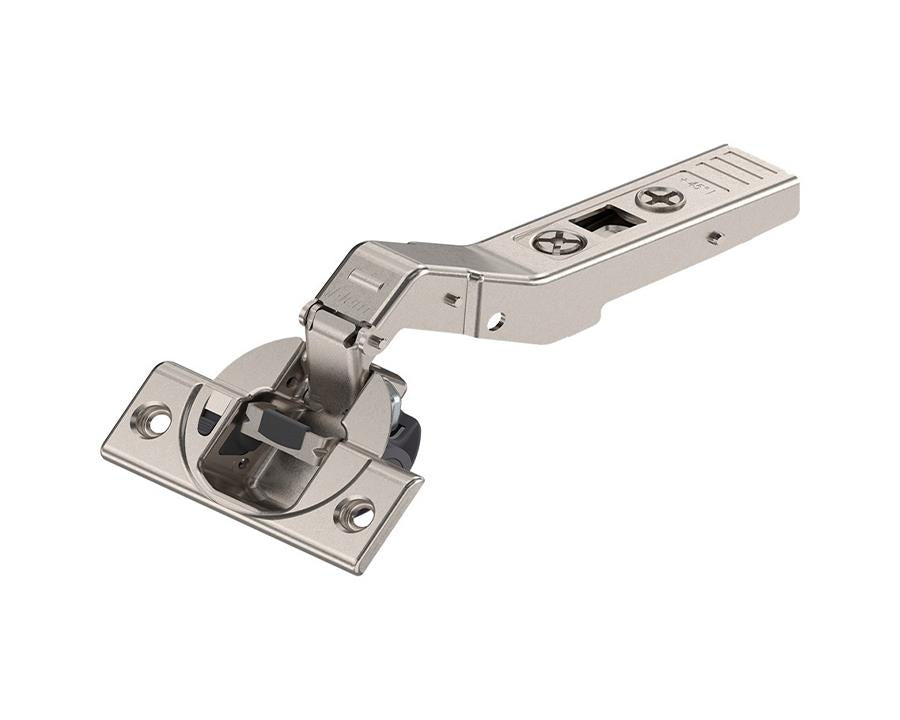

Blum CLIP top BLUMOTION Angled Soft Close Hinge 45 Degree I, Half Overlay Application. Boss: Screw-On 79B9658 by W&B

Wilson and Bradley Hinge Solutions

Wilson and Bradley combine engineering brilliance with design innovation to offer hinge systems that stand out for their functionality and ease of use. Our hinges are designed for effortless three-dimensional adjustment, ensuring smooth performance, reliable function, and a sleek appearance.

Built to last over 200,000 cycles of opening and closing, our hinges are suitable for a variety of door types, including wood, glass, aluminum frames, and both thick and thin doors. Specialized solutions are also available for angled doors and blind corners.

The CLIP top BLUMOTION feature automatically adapts to the door's dynamics, ensuring a soft, smooth closing action regardless of the door’s size or weight. With angles ranging from -50° to 50°, the BLUMOTION feature can be adjusted or deactivated for precise speed control. Thanks to the CLIP technology, doors can be easily attached and detached, while also offering simple three-dimensional and cam adjustments.

Our tried-and-true CLIP mechanism makes assembly quick and tool-free, ensuring a reliable, easy opening and closing experience for every door.

Features:

• Tested to withstand 200,000 opening and closing cycles
• Versatile design suitable for wood, glass, and aluminum doors
• 3-dimensional adjustment for precise alignment
• Easy, tool-free assembly and adjustments

Specifications:

• Application: Angled hinge
• Cranking: Half overlay
• Opening Angle: 95°
• Closing Mechanism: Spring-assisted
• Hinge Variant: Integrated BLUMOTION
• Cover Cap Types: 90M2603, 70.1553, 70T3504 (Boss cover cap)
• Boss Material: Steel, Nickel-plated finish
• Flange Width: 57mm
• Flange Length: 22mm
• Flange Height: 3.2mm
• Diameter of Hinge Boss Drilling: 35mm
• Distance Between Drillings: 45mm
• Fixing Hole Eccentric Position: 9.5mm
• Arm Material: Steel, Nickel-plated
• Cabinet Angle: 45°
• Side Adjustment: +/- 1.8mm
• Depth Adjustment: +/- 2mm
• Gap: 1mm
• Item Package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately.
