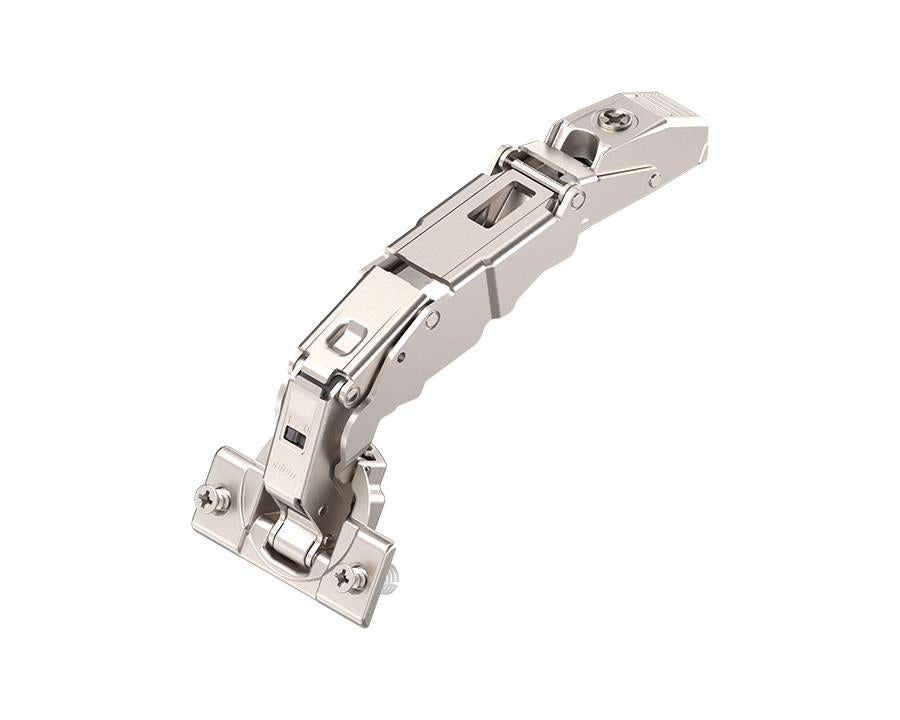

Blum CLIP top BLUMOTION 155° 0-protrusion hinge. Overlay Application. Boss: EXPANDO. CLIP top BLUMOTION. 71B758E by W&B

Innovative Hinge Solutions by Wilson and Bradley

Wilson and Bradley’s hinge systems bring together creative design, precise functionality, and reliable performance. Our hinges are built to allow smooth 3-dimensional adjustments and ensure easy installation, making them the ideal choice for a wide range of applications. Whether you are working with wood, glass, or aluminum frame doors, as well as thin or thick doors, our hinges provide versatile and durable solutions.

These hinges are designed to endure up to 200,000 opening and closing cycles, ensuring long-lasting performance. The CLIP mechanism allows for tool-free assembly, making the installation process quick and straightforward.

Features:

• Tested for durability with over 200,000 opening/closing cycles
• Suitable for various door applications, including wood, glass, and aluminum frames
• Easy 3-dimensional adjustment for precise alignment
• Tool-free assembly with the CLIP mechanism

Specifications:

• Application: Wide-angle hinge for zero protrusion
• Cranking: Overlay application
• Opening angle: 155°
• Closing mechanism: With spring
• Hinge variant: With integrated BLUMOTION
• Cover cap types: 70.4503, 70T3504 (boss cover cap)
• Boss material: Steel with nickel-plated finish
• Boss assembly: EXPANDO
• Flange dimensions:
  • Width: 57mm
  • Length: 22mm
  • Height: 3.2mm
• Hinge boss drilling: 35mm
• Fixing holes: 8mm
• Distance between drillings: 45mm
• Eccentric position of fixing holes: 9.5mm
• Boss drilling depth: 11.7mm
• Minimum drilling distance: 3mm
• Maximum drilling distance: 8mm
• Arm material: Zinc with nickel-plated finish
• Collision measurement (hinge arm height): 62mm
• Fixed dimension/factory setting: 11mm
• Side adjustment: +/- 2mm (with screw)
• Depth adjustment: +3/-2mm (with spiral screw)
• Gap: 1.5mm
• Packaging: Industrial packing

Note: All plates are sold separately
