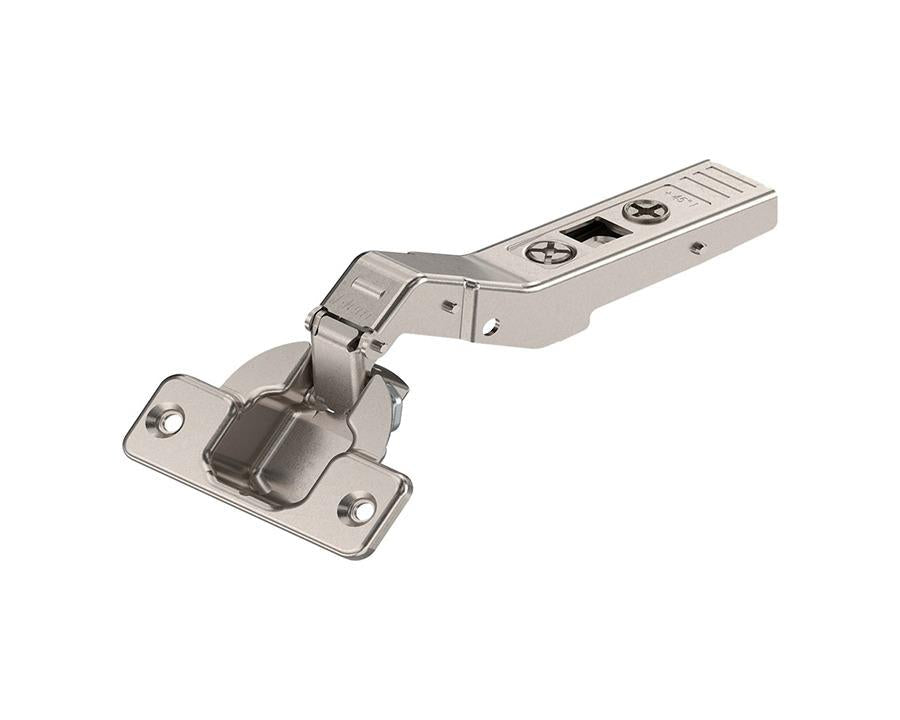

Blum CLIP top Angled Hinge 45 Degree I, Half Overlay Application. Boss: Screw-On 79A9658.T by W&B

Wilson and Bradley Angled Hinges – Precision Engineered for Seamless Functionality

The Wilson and Bradley hinge range combines innovative design and superior engineering, offering functionality that is uniquely tailored to meet the demands of modern cabinetry. Whether you are working with wood, glass, or aluminum frame doors, these hinges provide versatile solutions for both thin and thick doors. Our hinges are designed to withstand up to 200,000 opening and closing cycles, ensuring durability and long-lasting performance.

With the flexibility of 3-dimensional adjustment and a choice of screw-on or tool-free INSERTA options, Wilson and Bradley hinges make door-to-cabinet assembly fast, easy, and precise. These high-quality hinges are perfect for a range of applications, including special configurations such as angled, blind corner, or custom projects.

Features:

• Tested for 200,000+ cycles to ensure reliability over time.
• Versatile applications: Suitable for wood, glass, and aluminum frame doors.
• 3-dimensional adjustment for perfect alignment and operation.
• Quick and easy assembly with Blum’s patented CLIP mechanism.

Specifications:

• Application: Angled hinge
• Cranking: Half overlay
• Opening angle: 95°
• Closing mechanism: With spring
• Cover cap types: 90M2603, 70.1553
• Boss material: Steel, nickel plated
• Boss assembly: Screw-on
• Flange width: 57mm
• Flange length: 20mm
• Flange height: 3.2mm
• Diameter hinge boss drilling: 35mm
• Distance between drillings: 45mm
• Eccentric position of fixing holes: 9.5mm
• Boss drilling depth: 12.3mm
• Minimum/Maximum drilling distance: 3mm/7mm
• Arm material: Steel, nickel plated
• Cabinet angle: 45°
• Fixed dimension/factory setting: -6.01mm
• Side adjustment: +/- 1.8mm (with screw)
• Depth adjustment: +/- 2mm (spiral screw)
• Gap: 1mm
• Item package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately
