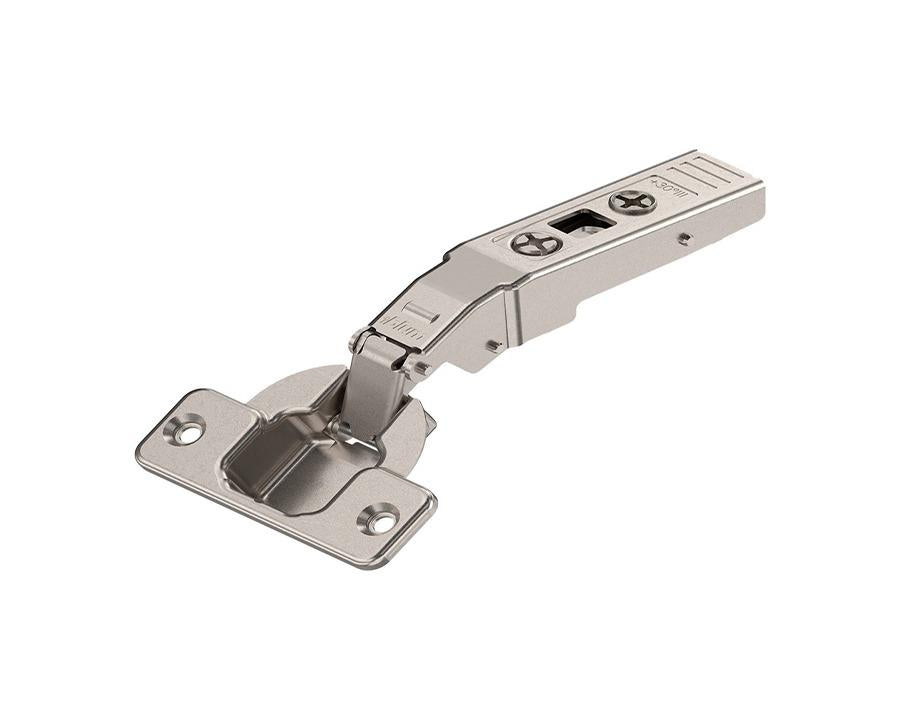

Blum CLIP top Angled Hinge 30 Degree Iii, Full Overlay. Boss: Screw-On 79A9456.T by W&B

Wilson and Bradley Angled Hinge

Wilson and Bradley hinges combine design ingenuity and functionality, offering durable and precise door movement. Ideal for modern furniture trends that allow greater customization, our hinges are engineered to handle a variety of applications including wood, glass, and aluminium frame doors. Whether for thin or thick doors, our hinges are built to withstand rigorous use—tested for over 200,000 opening and closing cycles. The reliable CLIP mechanism simplifies the installation, making it quick and tool-free.

Features:

• Tested to withstand over 200,000 cycles of reliable operation
• Suitable for various applications including angled doors
• 3-dimensional adjustment for precise alignment
• Tool-free assembly with the CLIP mechanism

Specifications:

• Application: Angled hinge
• Cranking: Maximum Overlay
• Opening angle: 95°
• Closing mechanism: With spring
• Cover cap types: 70.1503 (BPC10021), 90M2603, 70.1553
• Boss material: Steel, nickel plated
• Boss assembly: Screw-on
• Flange dimensions:
  • Width: 57mm
  • Length: 20mm
  • Height: 3.2mm
• Diameter hinge boss drilling: 35mm
• Distance between drillings: 45mm
• Eccentric position of fixing holes to hinge boss hole: 9.5mm
• Boss drilling depth: 12.3mm
• Minimum/Maximum drilling distance: 3mm/6mm
• Arm material: Steel, nickel plated
• Cabinet angle: 30°
• Fixed dimension/factory setting: 17.93mm
• Side adjustment: +/- 2mm (with screw)
• Depth adjustment: +/- 2mm (spiral screw)
• Gap: 1.5mm
• Item package: 1 piece
• Packaging: Commercial packing

Note: All plates are sold separately
