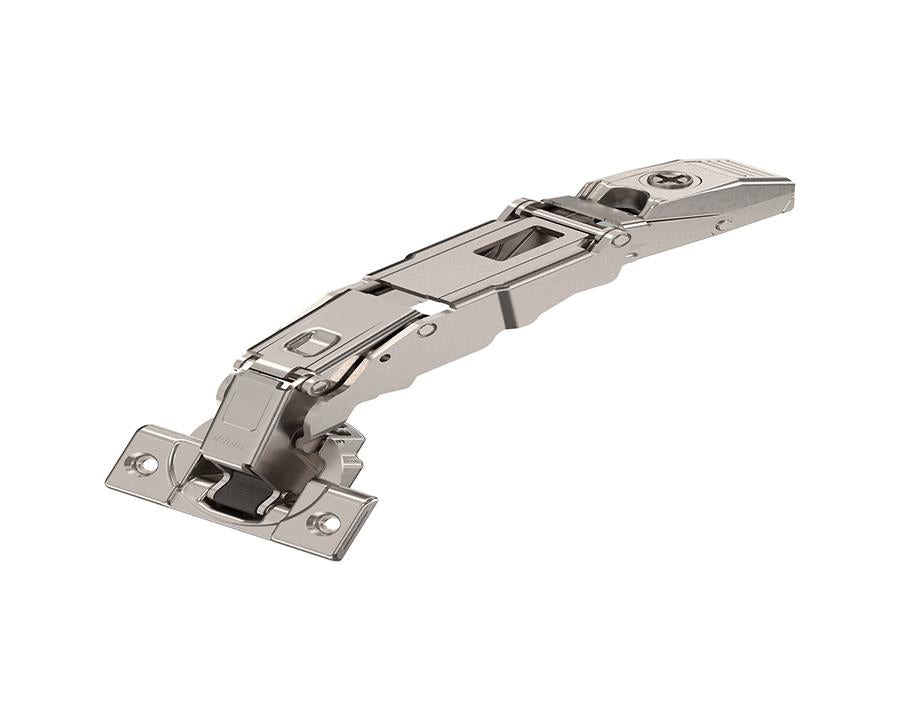

Blum CLIP top 155° 0-protrusion hinge. Overlay Application. Boss: Screw-on. Unsprung for TIP-ON. 70T7550TL ** Not compatible with BLUMOTION attachment ** by W&B

Blum CLIP top 155° 0-protrusion hinge. Overlay Application. Boss: Screw-on. Unsprung for TIP-ON. 70T7550TL ** Not compatible with BLUMOTION attachment ** by W&B

$18.64
$18.64
Sale Sold out

Innovative Hinge Solutions by Wilson and Bradley

Wilson and Bradley hinge systems combine durability, precision, and sleek design to bring you a product that excels in function and ease of use. Designed with a focus on long-lasting performance, our hinges provide smooth and reliable operation, ensuring your doors open and close effortlessly. Constructed to withstand over 200,000 cycles, they’re perfect for a variety of applications, including wood, glass, and aluminum frame doors. Our systems also cater to special needs like angled or blind corner installations.

With TIP-ON motion technology, handle-less fronts are now possible, while the CLIP mechanism guarantees tool-free assembly, making the installation process incredibly fast and simple.

Features:

  • Tested durability: Over 200,000 opening and closing cycles for lasting performance.
  • Versatile applications: Suited for all types of doors, including wood, glass, and aluminum.
  • TIP-ON technology: Enables handle-less designs for a modern look.
  • 3-dimensional adjustment: Ensures easy height, side, and depth adjustments.
  • Simple assembly: Tool-free installation with the CLIP mechanism.

Specifications:

  • Application: Wide angle hinge for zero protrusion
  • Cranking: Overlay
  • Opening angle: 155°
  • Closing mechanism: Unsprung
  • Hinge variant: With free movement for TIP-ON
  • Cover cap types: 70.4503, 70T7504 (boss cover cap)
  • Boss material: Steel
  • Boss finish: Nickel plated
  • Boss assembly: Screw-On
  • Flange dimensions:
    • Width: 57mm
    • Length: 22mm
    • Height: 3.2mm
  • Fixing hole dimensions:
    • Diameter hinge boss drilling: 35mm
    • Diameter fixing holes: 8mm
    • Distance between drillings: 45mm
    • Eccentric position: 9.5mm
  • Arm material: Zinc
  • Arm finish: Nickel plated
  • Collision measurement (hinge arm height): 62mm
  • Side adjustment: +/- 2mm (with screw)
  • Depth adjustment: Convenient with spiral screw (+3/-2mm)
  • Gap: 1.5mm
  • Packaging: Commercial packing

Note: All plates are sold separately
