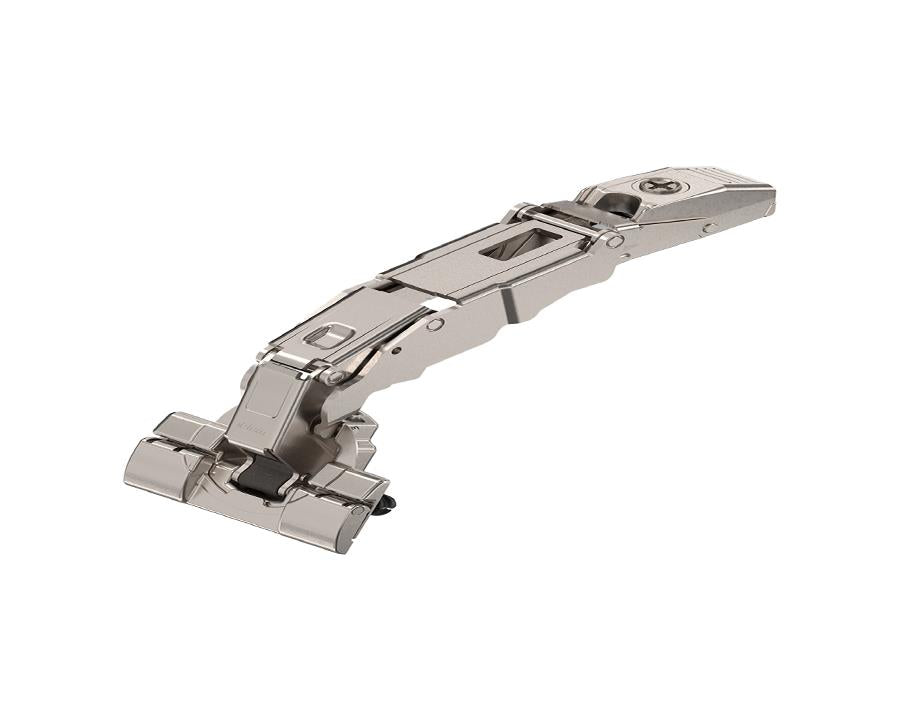

Blum CLIP top 155° 0-protrusion hinge. Overlay Application. Boss: INSERTA. Unsprung for TIP-ON. 70T7590TL ** Not compatible with BLUMOTION attachment ** by W&B

Blum CLIP top 155° 0-protrusion hinge. Overlay Application. Boss: INSERTA. Unsprung for TIP-ON. 70T7590TL ** Not compatible with BLUMOTION attachment ** by W&B

$19.06
$19.06
Sale Sold out

Innovative Hinge Solutions by Wilson and Bradley

Wilson and Bradley hinge systems combine ingenuity and precision to deliver exceptional performance and design. Engineered for versatility and ease, our hinges feature 3-dimensional adjustment, allowing for optimal alignment and smooth door operation. Designed to withstand over 200,000 opening and closing cycles, they are ideal for wood, glass, and aluminum frame doors, as well as thin and thick doors. Special solutions for blind corner and angled doors are also available.

With TIP-ON motion technology, you can create handle-less fronts, while the CLIP mechanism ensures fast, tool-free assembly. Blum’s time-tested designs guarantee reliability and ease of use for every door equipped with these hinges.

Features:

  • Durable: Tested for over 200,000 opening and closing cycles.
  • Versatile: Suitable for a wide range of door types, including wood, glass, and aluminum.
  • TIP-ON technology: Enables handle-less designs for modern aesthetics.
  • 3-dimensional adjustment: Ensures precise alignment in all directions.
  • Easy installation: Tool-free assembly with the CLIP mechanism.

Specifications:

  • Application: Wide angle hinge for zero protrusion
  • Cranking: Overlay application
  • Opening angle: 155°
  • Closing mechanism: Unsprung
  • Hinge variant: With free movement for TIP-ON
  • Cover cap type: 70.4503
  • Boss material: Steel
  • Boss finish: Nickel plated
  • Boss assembly: Screw-On
  • Flange width: 57mm
  • Flange length: 22mm
  • Flange height: 4.8mm
  • Fixing hole dimensions:
    • Hinge boss drilling diameter: 35mm
    • Diameter of fixing holes: 8mm
    • Distance between drillings: 45mm
  • Arm material: Zinc
  • Arm finish: Nickel plated
  • Collision measurement (hinge arm height): 62mm
  • Fixed dimension/factory fitting: 11mm
  • Side adjustment: +/- 2mm (with screw)
  • Depth adjustment: Convenient with spiral screw (+3/-2mm)
  • Gap: 1.5mm
  • Packaging: Commercial packing

Note: All plates are sold separately.
