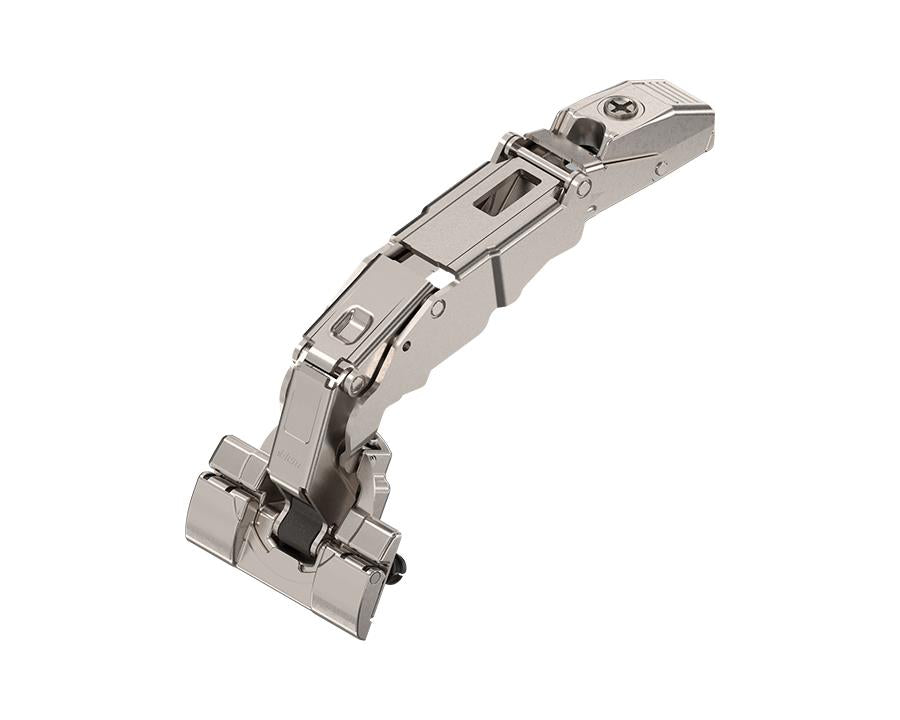

Blum CLIP top 155° 0-protrusion hinge. Overlay Application. Boss: INSERTA. Spring. 71T7590 ** Not compatible with BLUMOTION attachment ** by W&B

Blum Hinge Systems – Innovation for Seamless Functionality by Wilson and Bradley

Blum hinges are designed with a perfect blend of innovation and precision, ensuring reliable performance and effortless functionality. Featuring 3-dimensional adjustment, these systems offer easy alignment and flexible installation. Their sleek design also adds a modern touch to any space.

Built to withstand 200,000 cycles of opening and closing, Blum hinges are versatile, catering to various door types, including wood, glass, and aluminum-framed doors, as well as both thin and thick doors. Special solutions are available for more complex installations, such as blind corners or angled doors.

With features like INSERTA and the CLIP attachment mechanism, Blum hinges make the installation process seamless. Blum also provides a range of precise boring machines, assembly aids, and templates to ensure quick and accurate fitting.

The CLIP system allows for tool-free, fast, and efficient assembly, so that once installed, each Blum-equipped door opens and closes with reliable ease and long-lasting performance.

Key Features:

• Rigorously tested for over 200,000 cycles for optimal durability
• Suitable for all types of applications
• 3-dimensional adjustment for perfect alignment
• Quick, tool-free assembly with the CLIP system

Specifications:

• Application: Wide angle hinge for zero protrusion
• Cranking: Overlay application
• Opening Angle: 155°
• Closing Mechanism: Spring-based
• Boss Material: Steel, Nickel-plated
• Boss Assembly: INSERTA
• Flange Dimensions: 57mm (Width), 22mm (Length), 4.8mm (Height)
• Hinge Boss Drilling Diameter: 35mm
• Fixing Hole Diameter: 8mm
• Distance Between Drillings: 45mm
• Eccentric Position of Fixing Holes to Boss Hole: 9.5mm
• Boss Drilling Depth: 11.7mm
• Side Adjustment: +/-2mm (screw-based)
• Depth Adjustment: +3/-2mm (spiral screw)
• Gap: 1.5mm
• Collision Measurement (Hinge Arm Height): 62mm
• Fixed Dimension/Factory Setting: 11mm
• Packaging: Industrial packing (1 piece per pack)

Note: All plates are sold separately.
