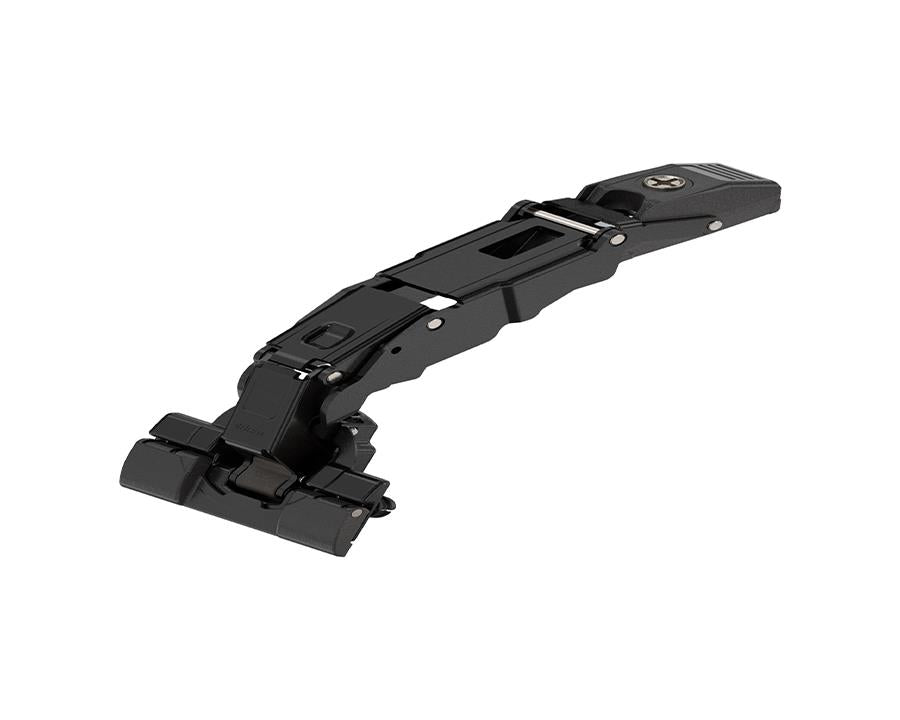

Blum CLIP top 155° 0-protrusion hinge in onyx black. Overlay Application. Boss: INSERTA. Unsprung for TIP-ON. 70T7590TL ** Not compatible with BLUMOTION attachment ** by W&B

Innovative Hinge Solutions by Wilson and Bradley

Wilson and Bradley hinge systems offer exceptional performance, precise adjustment, and superior design. With features like 3-dimensional adjustment, our hinges are engineered for durability, providing a reliable opening and closing mechanism that’s built to last. Tested to endure over 200,000 cycles, these hinges are versatile enough for wood, glass, aluminum frame, and both thin and thick doors. We also offer tailored solutions for unique applications like blind corners and angled doors.

Our TIP-ON motion technology enables handle-less fronts, and the CLIP mechanism guarantees tool-free assembly, making installation fast and easy.

Features:

• Durability: Withstands over 200,000 opening and closing cycles.
• Versatility: Suitable for all door types, including wood, glass, and aluminum.
• TIP-ON technology: Allows handle-less designs for a seamless aesthetic.
• 3-dimensional adjustment: Enables simple height, side, and depth adjustments.
• Easy assembly: Tool-free installation with the CLIP mechanism.

Specifications:

• Application: Wide angle hinge for zero protrusion
• Cranking: Overlay
• Opening angle: 155°
• Closing mechanism: Unsprung
• Hinge variant: With free movement for TIP-ON
• Cover cap type: 70.4503
• Boss material: Steel
• Boss finish: Onyx black
• Boss assembly: Screw-On
• Flange dimensions:
  • Width: 57mm
  • Length: 22mm
  • Height: 4.8mm
• Fixing hole dimensions:
  • Diameter hinge boss drilling: 35mm
  • Diameter fixing holes: 8mm
  • Distance between drillings: 45mm
  • Eccentric position: 9.5mm
• Arm material: Zinc
• Arm finish: Onyx black
• Collision measurement (hinge arm height): 62mm
• Side adjustment: +/- 2mm (with screw)
• Depth adjustment: Convenient with spiral screw (+3/-2mm)
• Gap: 1.5mm
• Packaging: Commercial packing

Note: All plates are sold separately.
