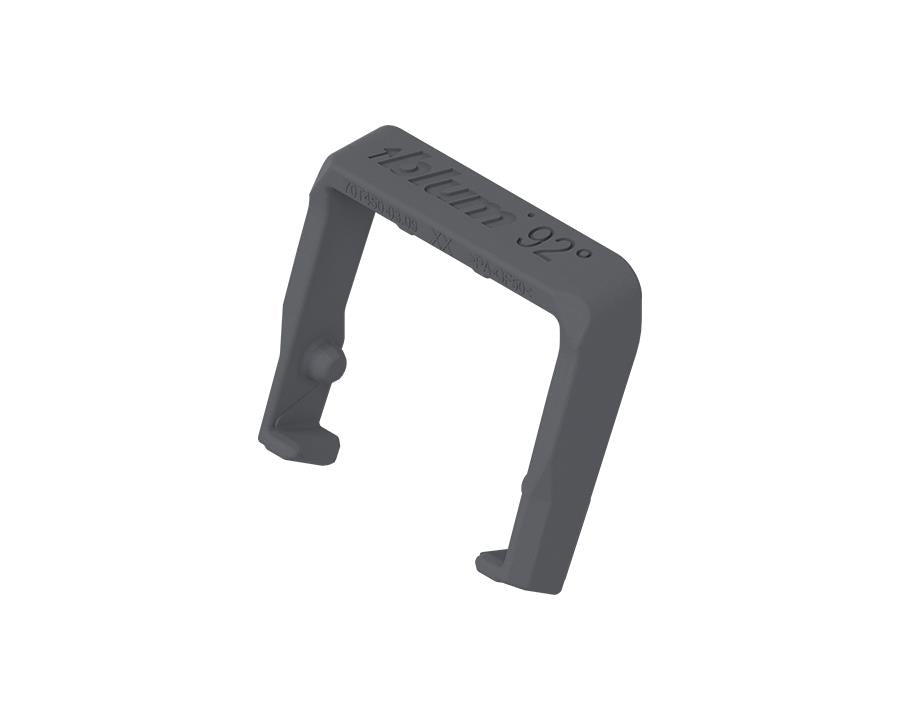

Blum 92° Opening Angle Stop for CLIP top BLUMOTION 110° EXPANDO T hinge by W&B

Blum Hinges: Innovation in Functionality and Design
By Wilson & Bradley

At Blum, we combine ingenuity and inventive power to create functionality that is truly unique. Our hinge systems represent reliable performance, enhanced adjustability, easy assembly, and an attractive design. With 3-dimensional adjustment capabilities, our hinges are adaptable to various door types and applications.

Constructed to withstand up to 200,000 opening and closing cycles, our hinge range provides solutions for wood, glass, aluminum frame doors, as well as thin and thick doors. We also offer special solutions, including blind corner and angled applications.

The CLIP top BLUMOTION hinge adapts to the dynamics of each door. Regardless of the size, weight, or closing force, it ensures a smooth and quiet closing action. Available in angles of 95°, 107°, 110°, and 155°, the BLUMOTION feature can be deactivated on one or both hinges to adjust closing speed. The innovative CLIP technology allows for easy snap-on and off assembly, along with effortless 3-dimensional and cam adjustments.

For thin fronts (8 mm to 14 mm thickness), EXPANDO T is the ideal fixing system. Suitable for a range of materials, it offers an exceptional fit, with a steel pull-in anchor for harder materials and plastic jaws for softer ones. With a fixed drilling diameter of 10 mm and a drilling depth of just 6 mm, EXPANDO T opens up possibilities for creative design solutions.

Blum’s proven CLIP mechanism makes assembly tool-free, fast, and easy. Every door fitted with Blum hinges opens and closes with the utmost reliability and ease.

Features:

• Tested to withstand 200,000 opening and closing cycles
• Suitable for various applications (wood, glass, aluminum frame, thin and thick doors)
• 3-dimensional adjustment for precision fitting
• Easy assembly and adjustment with tool-free installation

Specifications:

• Type of Stop: Opening angle for stop to thin door hinges
• Manufacturing Type of Component: Injection-moulded components
• Material: Nylon
• Colour/Finish: RAL 7037 Dust Grey
• Limiting Dimension: 92°
• Fixing of Stop: Clip-on
• Length: 20 mm
• Width: 9.64 mm
• Thickness: 17.57 mm
• Item Package: 1 piece
• Packaging: Industrial packing
