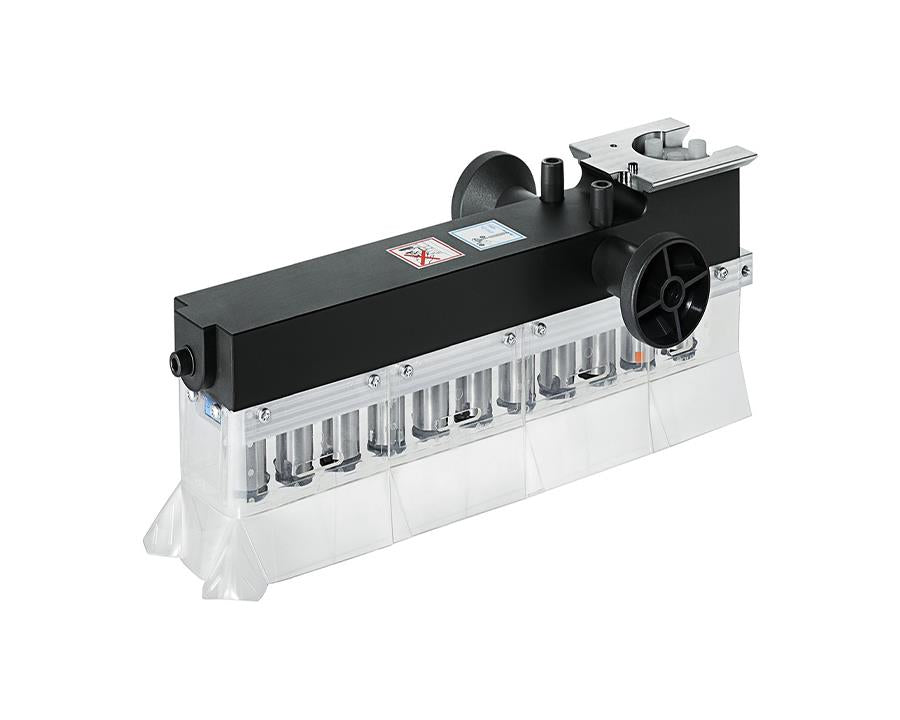

Blum 11 Spindle Drilling Head for PRO-CENTER, MINIPRESS top & MINIPRESS PRO MZK.224S.01 by W&B

MINIPRESS Top with EASYSTICK Ruler by Wilson and Bradley

For optimum manufacturing efficiency, MINIPRESS Top brings precision, reliability, and versatility to your assembly processes. This machine simplifies drilling and fitting installation, allowing for both vertical and optional horizontal drilling with ease. With EASYSTICK, the entire assembly process is optimized for speed and accuracy.

Key Features:

• Flexible Drilling: Vertical and optional horizontal drilling for Blum fittings, accommodating a wide variety of assembly tasks.
• User-Friendly: No programming skills required—start working right away.
• Digitalized Workflow: Plan cabinet designs directly on the machine or transfer from the Cabinet Configurator.
• Tool-Free Drill Head Change: Quick and simple drill head swapping with the new clamping technology.
• Manual Adjustment: Adjustable Y-axis up to 350 mm for precise drilling.
• EASYSTICK Integration: Automatically moves stops to the correct positions, guiding you through each step of the assembly.

Drilling Head Specifications:

• Type: Drilling head with quick connect chuck
• Number of Spindles: 11 (6 right, 5 left)
• Drilling Options: Front fixing brackets, cabinet profiles, and lift mechanisms
• Model: Series CP
• Overall Drill Bit Length: 57 mm
• Drilling Head Assembly: Quick exchange mechanism for easy switching
• Rotation: No rotation, precision drilling for accurate assembly
• Processing Types: Drilling for front fixings, cabinet profiles, lift mechanisms
• Net Weight: 5.6 kg

Additional Specifications:

• Machine Type: MINIPRESS Top
• Power and Voltage: 24V system, 1A current, 0.024 kW motor performance
• Maximum Workable Thickness: Dependent on machine setup, with various wood thickness options.
• Stop Positions: 15 positions for precise adjustments.
• Dimensions: 1700 mm width, 85 mm depth, 61.7 mm height during transport.
